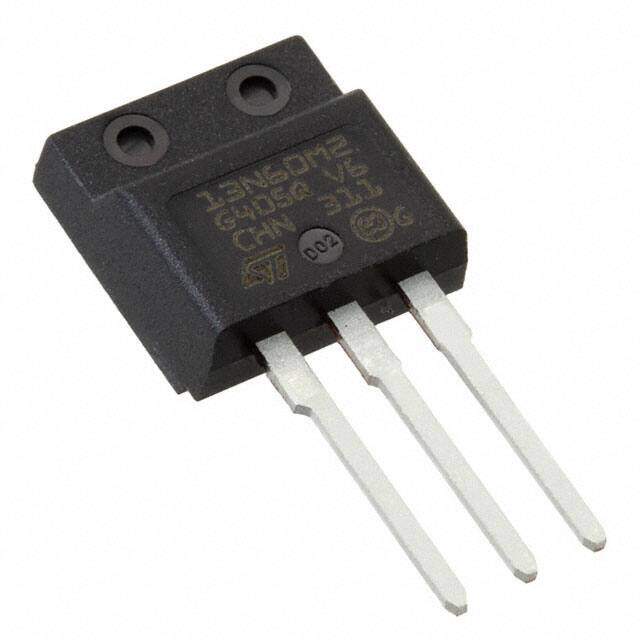

STU7N60M2
RoHS
RoHS compliant
RoHS compliantPackage TO-251-3 Short Leads, IPak, TO-251AA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Trans MOSFET N-CH 600V 5A 3-Pin(3+Tab) IPAK Tube
PDF
/
Buying Options
Total Price: USD $1.22
Unit Price: USD $1.2232
≥1 USD $1.2232
≥10 USD $0.98384
≥100 USD $0.779618
≥500 USD $0.660818
≥1000 USD $0.538314
≥3000 USD $0.506757
Inventory: 1239
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 2.4mm
Length 6.6mm
Height 6.2mm
Technical
Avalanche Energy Rating (Eas) 99 mJ
DS Breakdown Voltage-Min 600V
Pulsed Drain Current-Max (IDM) 20A
Drain-source On Resistance-Max 0.95Ohm
Drain Current-Max (Abs) (ID) 5A
Gate to Source Voltage (Vgs) 25V
Continuous Drain Current (ID) 5A
Turn-Off Delay Time 19.3 ns
Fall Time (Typ) 15.9 ns
Vgs (Max) ±25V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 600V
Rise Time 7.2 ns
Gate Charge (Qg) (Max) @ Vgs 8.8nC @ 10V
Current - Continuous Drain (Id) @ 25°C 5A Tc
Input Capacitance (Ciss) (Max) @ Vds 271pF @ 100V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 950m Ω @ 2.5A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 7.6 ns
Case Connection DRAIN
Power Dissipation 60W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 60W Tc
Number of Channels 1
Number of Elements 1
Base Part Number STU7N
Technology MOSFET (Metal Oxide)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MDmesh? II Plus
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 3
Package / Case TO-251-3 Short Leads, IPak, TO-251AA
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 26 Weeks
Alternative Model
