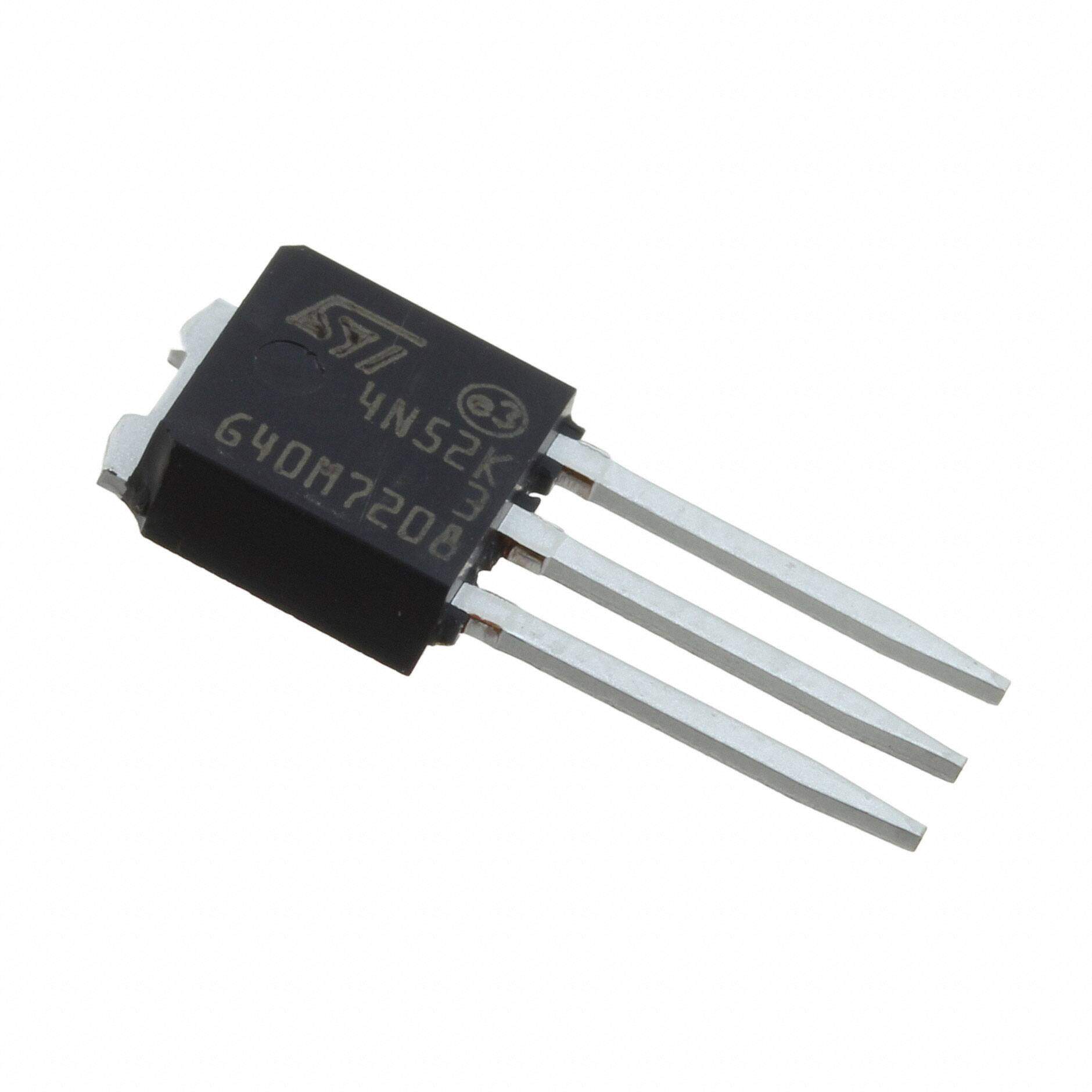

STU4N52K3
RoHS
RoHS compliant
RoHS compliantPackage TO-251-3 Short Leads, IPak, TO-251AA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-Ch 525V 2.1 Ohm 2.5A SuperMESH 3
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.1264
≥1 USD $1.1264
≥10 USD $0.90347
≥100 USD $0.715968
≥500 USD $0.606883
≥1000 USD $0.494366
≥3000 USD $0.465388
Inventory: 1256
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 4.6mm
Length 10.4mm
Height 15.75mm
Technical
Avalanche Energy Rating (Eas) 110 mJ
Pulsed Drain Current-Max (IDM) 10A
Drain to Source Breakdown Voltage 525V
Gate to Source Voltage (Vgs) 30V
JEDEC-95 Code TO-220AB
Threshold Voltage 3.75V
Continuous Drain Current (ID) 2.5A
Turn-Off Delay Time 21 ns
Fall Time (Typ) 14 ns
Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Rise Time 7 ns
Gate Charge (Qg) (Max) @ Vgs 11nC @ 10V
Current - Continuous Drain (Id) @ 25°C 2.5A Tc
Input Capacitance (Ciss) (Max) @ Vds 334pF @ 100V
Vgs(th) (Max) @ Id 4.5V @ 50μA
Rds On (Max) @ Id, Vgs 2.6 Ω @ 1.25A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 8 ns
Power Dissipation 45W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 45W Tc
Number of Elements 1
Pin Count 3
Base Part Number STU4N
Peak Reflow Temperature (Cel) 260
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Power
Additional Feature ULTRA-LOW RESISTANCE
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series SuperMESH3?
Packaging Tube
Operating Temperature 150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 3
Package / Case TO-251-3 Short Leads, IPak, TO-251AA
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 12 Weeks
Alternative Model
