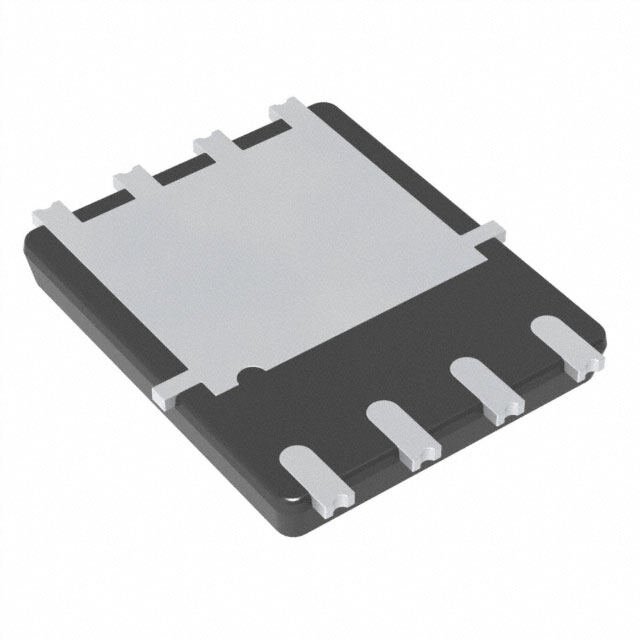

STLD125N4F6AG
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerWDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 40V 120A POWERFLAT
PDF
/
Buying Options
Total Price: USD $109.89
Unit Price: USD $109.8884
≥1 USD $109.8884
≥10 USD $106.34395
≥100 USD $102.79855
≥500 USD $92.16425
Inventory: 1135
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Avalanche Energy Rating (Eas) 150 mJ
DS Breakdown Voltage-Min 40V
Pulsed Drain Current-Max (IDM) 480A
Drain-source On Resistance-Max 0.004Ohm
Drain Current-Max (Abs) (ID) 101A
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 6.5V 10V
Drain to Source Voltage (Vdss) 40V
Gate Charge (Qg) (Max) @ Vgs 91nC @ 10V
Current - Continuous Drain (Id) @ 25°C 120A Tc
Input Capacitance (Ciss) (Max) @ Vds 5600pF @ 10V
Vgs(th) (Max) @ Id 4V @ 1mA
Rds On (Max) @ Id, Vgs 3m Ω @ 75A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Case Connection DRAIN
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 130W Tc
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
JESD-30 Code R-PDSO-F5
Reference Standard AEC-Q101
Base Part Number STLD125
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series STripFET? F6
Packaging Tape & Reel (TR)
Operating Temperature -55°C~175°C TJ
Physical
Transistor Element Material SILICON
Surface Mount YES
Package / Case 8-PowerWDFN
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 20 Weeks
Alternative Model
