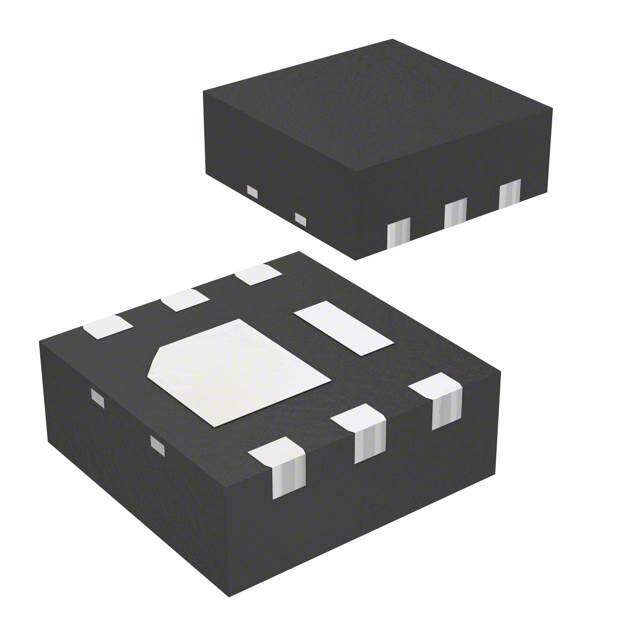

STL3N10F7
RoHS
RoHS compliant
RoHS compliantPackage 6-PowerWDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET POWER MOSFET
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.6336
≥1 USD $0.6336
≥10 USD $0.55176
≥100 USD $0.38192
≥500 USD $0.319158
≥1000 USD $0.271621
Inventory: 1107
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Drain to Source Breakdown Voltage 100V
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 4A
Turn-Off Delay Time 11 ns
Fall Time (Typ) 4 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Rise Time 3ns
Gate Charge (Qg) (Max) @ Vgs 7.8nC @ 10V
Current - Continuous Drain (Id) @ 25°C 4A Tc
Input Capacitance (Ciss) (Max) @ Vds 408pF @ 25V
Vgs(th) (Max) @ Id 4.5V @ 250μA
Rds On (Max) @ Id, Vgs 70m Ω @ 2A, 10V
FET Type N-Channel
Turn On Delay Time 6.3 ns
Element Configuration Single
Power Dissipation-Max 2.4W Tc
Number of Channels 1
Base Part Number STL3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Technology MOSFET (Metal Oxide)
Resistance 62mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DeepGATE?, STripFET? VII
Packaging Cut Tape (CT)
Operating Temperature -55°C~150°C TJ
Physical
Number of Pins 6
Package / Case 6-PowerWDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
