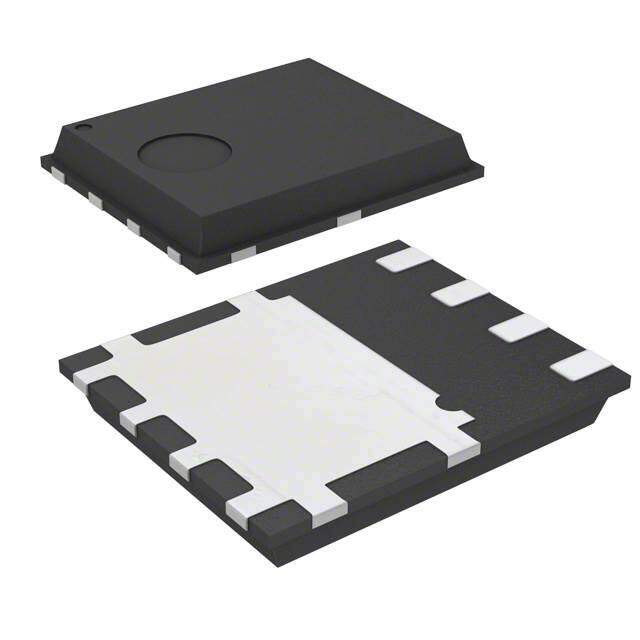

STL35N6F3
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-ch 60V 0.018 Ohm STripFET III
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5377
≥1 USD $0.5377
≥10 USD $0.4408
≥100 USD $0.4275
≥500 USD $0.41325
≥1000 USD $0.39995
Inventory: 15424
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-PowerVDFN
Number of Pins 8
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tape & Reel (TR)
Series STripFET? III
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Resistance 22MOhm
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Terminal Position DUAL
Terminal Form FLAT
Base Part Number STL35
JESD-30 Code R-PDSO-F5
Number of Elements 1
Power Dissipation-Max 5W Ta 80W Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 80W
Case Connection DRAIN
Turn On Delay Time 9.7 ns
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 22m Ω @ 3A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Current - Continuous Drain (Id) @ 25°C 35A Tc
Rise Time 2.9ns
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Fall Time (Typ) 4 ns
Turn-Off Delay Time 19 ns
Continuous Drain Current (ID) 44A
Gate to Source Voltage (Vgs) 20V
Drain Current-Max (Abs) (ID) 35A
Drain to Source Breakdown Voltage 60V
Avalanche Energy Rating (Eas) 409 mJ
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
