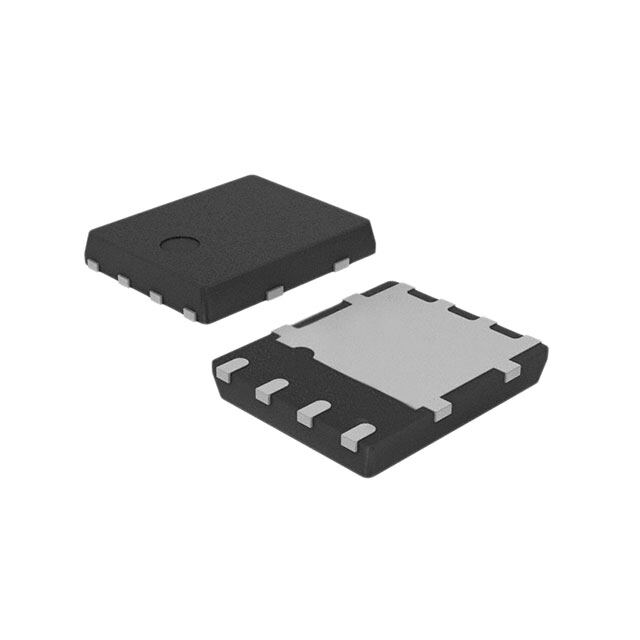

STL220N3LLH7
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET POWER MOSFET
PDF
/
Buying Options
Total Price: USD $1.63
Unit Price: USD $1.634
≥1 USD $1.634
≥10 USD $1.34045
≥100 USD $1.29865
≥500 USD $1.25685
≥1000 USD $1.21505
Inventory: 49140
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-PowerVDFN
Number of Pins 8
Technical
Operating Temperature -55°C~150°C TJ
Packaging Cut Tape (CT)
Series DeepGATE?, STripFET? VII
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 810μOhm
Technology MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number STL220
Number of Channels 1
Power Dissipation-Max 113W Tc
Element Configuration Single
Turn On Delay Time 55 ns
FET Type N-Channel
Rds On (Max) @ Id, Vgs 1.1m Ω @ 25A, 10V
Vgs(th) (Max) @ Id 2.2V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 8650pF @ 25V
Current - Continuous Drain (Id) @ 25°C 220A Tc
Gate Charge (Qg) (Max) @ Vgs 46nC @ 4.5V
Rise Time 115ns
Drive Voltage (Max Rds On,Min Rds On) 4.5V 10V
Vgs (Max) ±20V
Fall Time (Typ) 51 ns
Turn-Off Delay Time 70 ns
Continuous Drain Current (ID) 220A
Gate to Source Voltage (Vgs) 20V
Drain to Source Breakdown Voltage 30V
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
