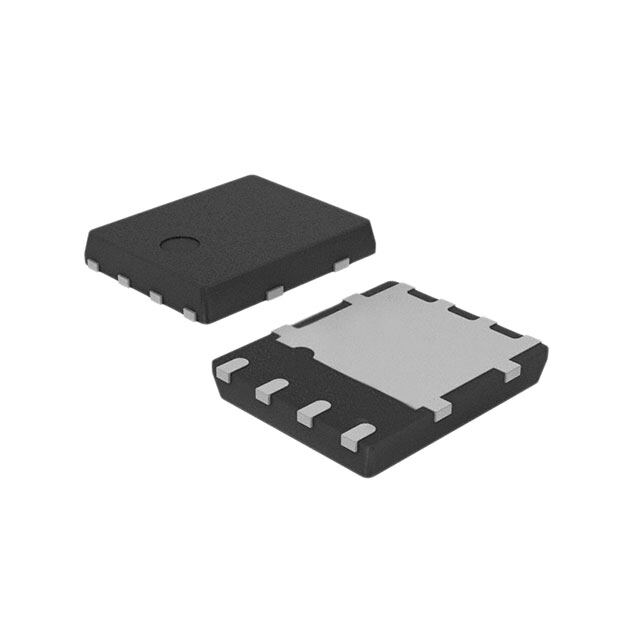

STL100N10F7
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 100V 80A PWRFLT5X6
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.1648
≥1 USD $2.1648
≥10 USD $1.79608
≥100 USD $1.429824
≥500 USD $1.209877
≥1000 USD $1.026564
Inventory: 78160
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 6.35mm
Length 5.4mm
Height 950μm
Technical
Avalanche Energy Rating (Eas) 400 mJ
Pulsed Drain Current-Max (IDM) 76A
Drain-source On Resistance-Max 0.0073Ohm
Drain Current-Max (Abs) (ID) 70A
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 80A
Turn-Off Delay Time 46 ns
Fall Time (Typ) 15 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 100V
Rise Time 40 ns
Gate Charge (Qg) (Max) @ Vgs 80nC @ 10V
Current - Continuous Drain (Id) @ 25°C 80A Tc
Input Capacitance (Ciss) (Max) @ Vds 5680pF @ 50V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 7.3m Ω @ 19A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 27 ns
Case Connection DRAIN
Power Dissipation 100W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 5W Ta 100W Tc
Number of Elements 1
JESD-30 Code R-PDSO-F5
Base Part Number STL100
Peak Reflow Temperature (Cel) 260
Terminal Form FLAT
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Powers
Additional Feature ULTRA LOW RESISTANCE
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series DeepGATE?, STripFET? VII
Packaging Tape & Reel (TR)
Operating Temperature -55°C~175°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 8
Package / Case 8-PowerVDFN
Mounting Type Surface Mount
Mount Surface Mount
