STK22N6F3
RoHS
RoHS compliant
RoHS compliantPackage PolarPak?
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description

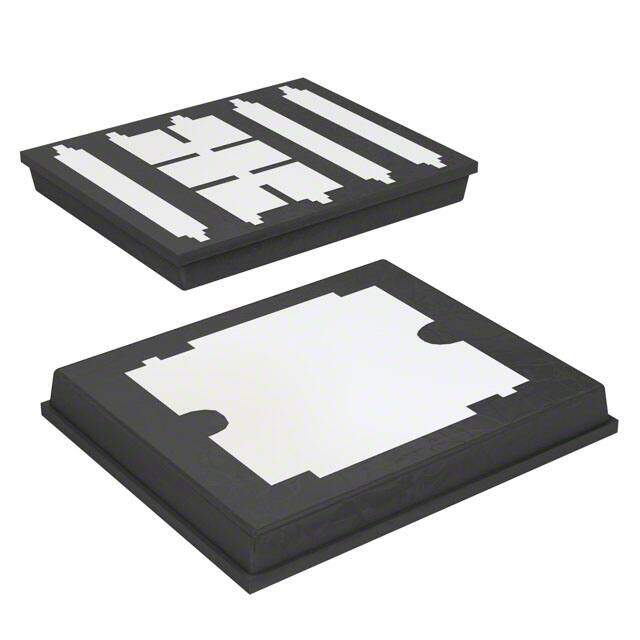

MOSFET N-channel 60 V 22 A PolarPAK
PDF
/
Buying Options
Total Price: USD $1.82
Unit Price: USD $1.823017
≥1 USD $1.823017
Inventory: 90
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Nominal Vgs 4 V
Avalanche Energy Rating (Eas) 800 mJ
Pulsed Drain Current-Max (IDM) 88A
Drain to Source Breakdown Voltage 60V
Drain-source On Resistance-Max 0.006Ohm
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 22A
Turn-Off Delay Time 28 ns
Fall Time (Typ) 5 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Rise Time 14ns
Gate Charge (Qg) (Max) @ Vgs 41nC @ 10V
Current - Continuous Drain (Id) @ 25°C 22A Tc
Input Capacitance (Ciss) (Max) @ Vds 2500pF @ 25V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 6m Ω @ 11A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 16 ns
Case Connection SOURCE
Power Dissipation 5.2W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 5.2W Tc
Number of Elements 1
JESD-30 Code R-XDSO-N4
Pin Count 10
Base Part Number STK22
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Power
Additional Feature ULTRA-LOW RESISTANCE
Terminal Finish MATTE TIN
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Series STripFET?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 10
Package / Case PolarPak?
Mounting Type Surface Mount
Mount Surface Mount
