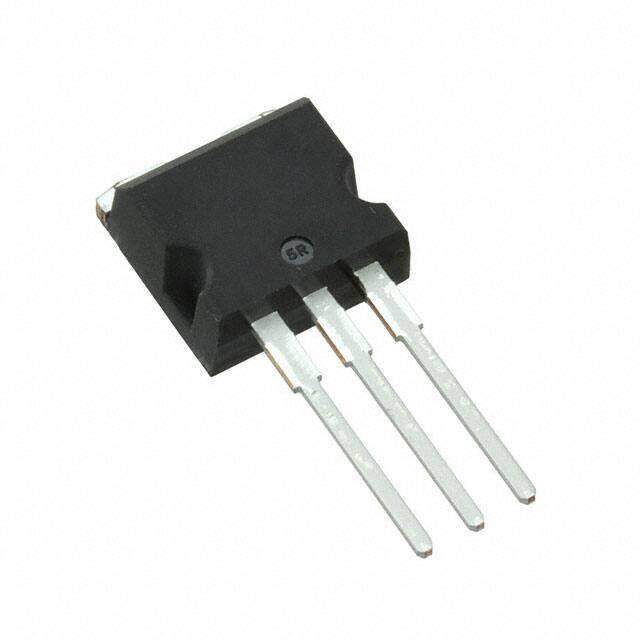

STI33N65M2
RoHS
RoHS compliant
RoHS compliantPackage TO-262-3 Long Leads, I2Pak, TO-262AA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 650V 24A I2PAK
PDF
/
Buying Options
Total Price: USD $31.17
Unit Price: USD $31.16665
≥1 USD $31.16665
≥10 USD $25.5721
≥100 USD $24.77315
≥500 USD $23.9742
≥1000 USD $23.17525
Inventory: 1154
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.6mm
Length 10.4mm
Height 9.35mm
Technical
Avalanche Energy Rating (Eas) 780 mJ
DS Breakdown Voltage-Min 650V
Pulsed Drain Current-Max (IDM) 96A
Drain-source On Resistance-Max 0.14Ohm
Gate to Source Voltage (Vgs) 25V
Continuous Drain Current (ID) 24A
Turn-Off Delay Time 72.5 ns
Vgs (Max) ±25V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 650V
Gate Charge (Qg) (Max) @ Vgs 41.5nC @ 10V
Current - Continuous Drain (Id) @ 25°C 24A Tc
Input Capacitance (Ciss) (Max) @ Vds 1790pF @ 100V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 140m Ω @ 12A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 13.5 ns
Case Connection DRAIN
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 190W Tc
Number of Elements 1
Base Part Number STI33N
Technology MOSFET (Metal Oxide)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MDmesh? M2
Packaging Tube
Operating Temperature 150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 3
Package / Case TO-262-3 Long Leads, I2Pak, TO-262AA
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 16 Weeks
