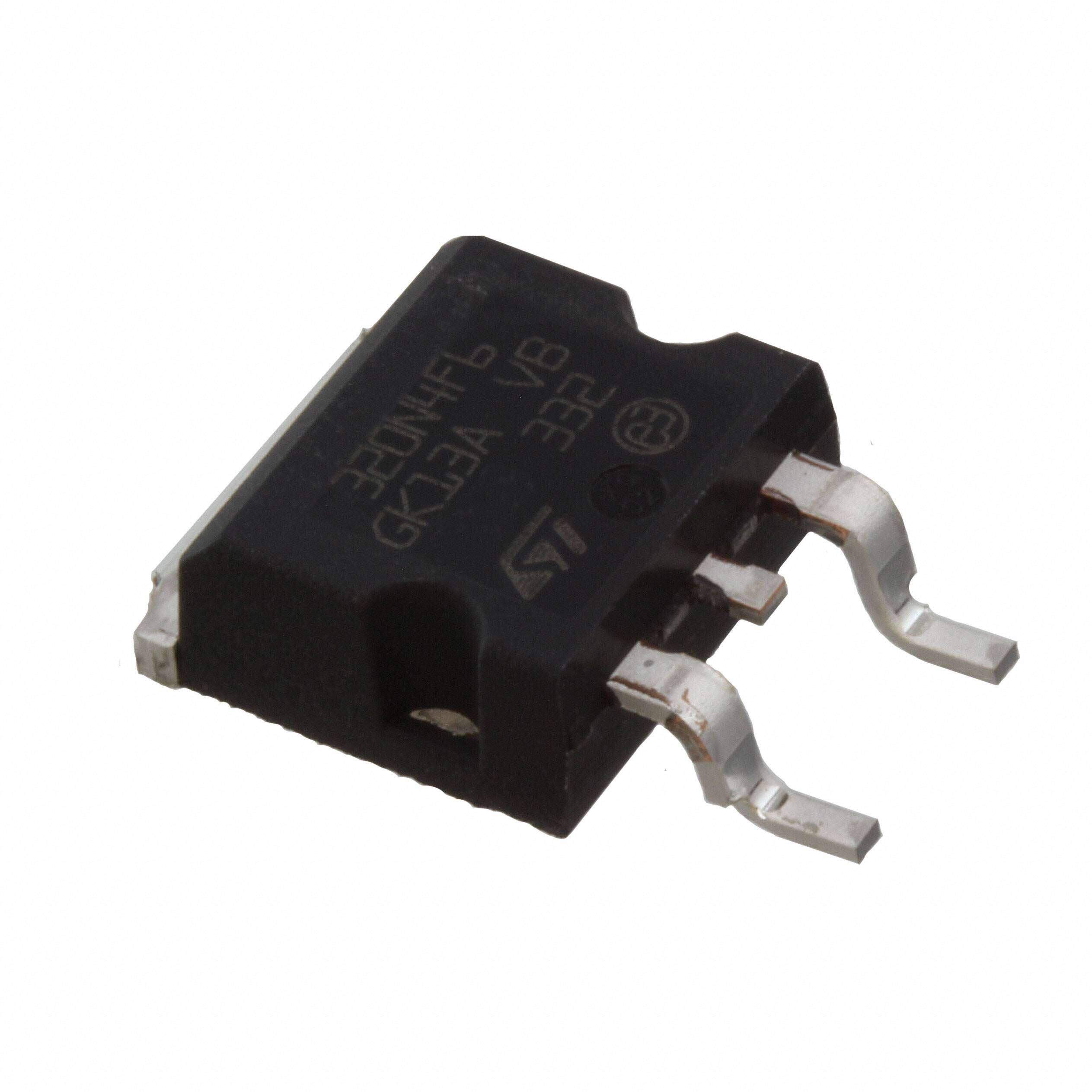

STH320N4F6-2
RoHS
RoHS compliant
RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab) Variant
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 40V 11mOhm typ 200A STripFET
PDF
/
Buying Options
Total Price: USD $4.24
Unit Price: USD $4.2416
≥1 USD $4.2416
≥10 USD $3.5596
≥100 USD $2.879712
Inventory: 310
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 10.4mm
Length 15.8mm
Height 4.8mm
Technical
Drain to Source Breakdown Voltage 40V
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 200A
Turn-Off Delay Time 190 ns
Fall Time (Typ) 95 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Rise Time 98ns
Gate Charge (Qg) (Max) @ Vgs 240nC @ 10V
Current - Continuous Drain (Id) @ 25°C 200A Tc
Input Capacitance (Ciss) (Max) @ Vds 13800pF @ 15V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 1.3m Ω @ 80A, 10V
FET Type N-Channel
Turn On Delay Time 28 ns
Element Configuration Single
Power Dissipation-Max 300W Tc
Base Part Number STH320
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Powers
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Automotive, AEC-Q101, DeepGATE?, STripFET? VI
Packaging Cut Tape (CT)
Operating Temperature -55°C~175°C TJ
Physical
Number of Pins 3
Package / Case TO-263-3, D2Pak (2 Leads + Tab) Variant
Mounting Type Surface Mount
Mount Surface Mount
