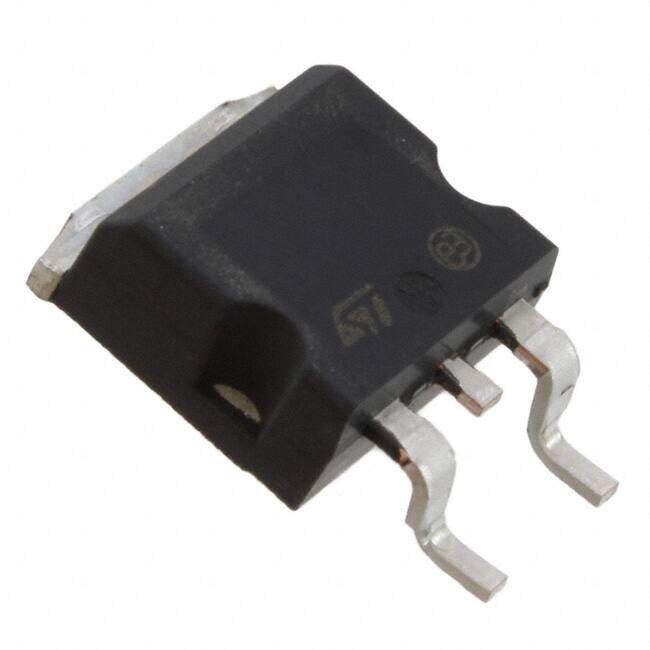

STH185N10F3-2
RoHS
RoHS compliant
RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 100V 180A H2PAK-2
PDF
/
Buying Options
Total Price: USD $3.7
Unit Price: USD $3.69645
≥1 USD $3.69645
≥10 USD $3.0324
≥100 USD $2.93835
≥500 USD $2.84335
≥1000 USD $2.74835
Inventory: 1256
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Technical
Operating Temperature -55°C~175°C TJ
Packaging Cut Tape (CT)
Series Automotive, AEC-Q101, STripFET? F3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number STH185
Power Dissipation-Max 315W Tc
Element Configuration Single
Turn On Delay Time 25.6 ns
FET Type N-Channel
Rds On (Max) @ Id, Vgs 4.5m Ω @ 60A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 6665pF @ 25V
Current - Continuous Drain (Id) @ 25°C 180A Tc
Gate Charge (Qg) (Max) @ Vgs 114.6nC @ 10V
Drain to Source Voltage (Vdss) 100V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Turn-Off Delay Time 99.9 ns
Continuous Drain Current (ID) 180A
Dimensions
Length 15.8mm
Compliance
RoHS Status ROHS3 Compliant
