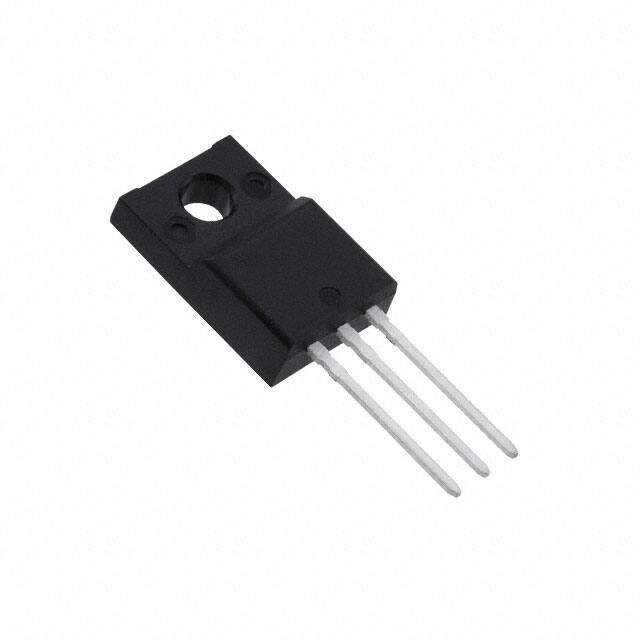

STFU6N65
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3 Full Pack
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
N-CHANNEL 650 V, 1.2 OHM TYP., 4
PDF
/
Buying Options
Total Price: USD $1.32
Unit Price: USD $1.32
≥1 USD $1.32
≥10 USD $1.1
≥100 USD $0.875248
≥500 USD $0.74059
Inventory: 997
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack
Technical
Operating Temperature -55°C~150°C TA
Packaging Tube
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology MOSFET (Metal Oxide)
Base Part Number STFU6
Power Dissipation-Max 620mW Ta 77W Tc
FET Type N-Channel
Rds On (Max) @ Id, Vgs 2.7 Ω @ 2A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 463pF @ 25V
Current - Continuous Drain (Id) @ 25°C 4A Tc
Drain to Source Voltage (Vdss) 650V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±30V
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
