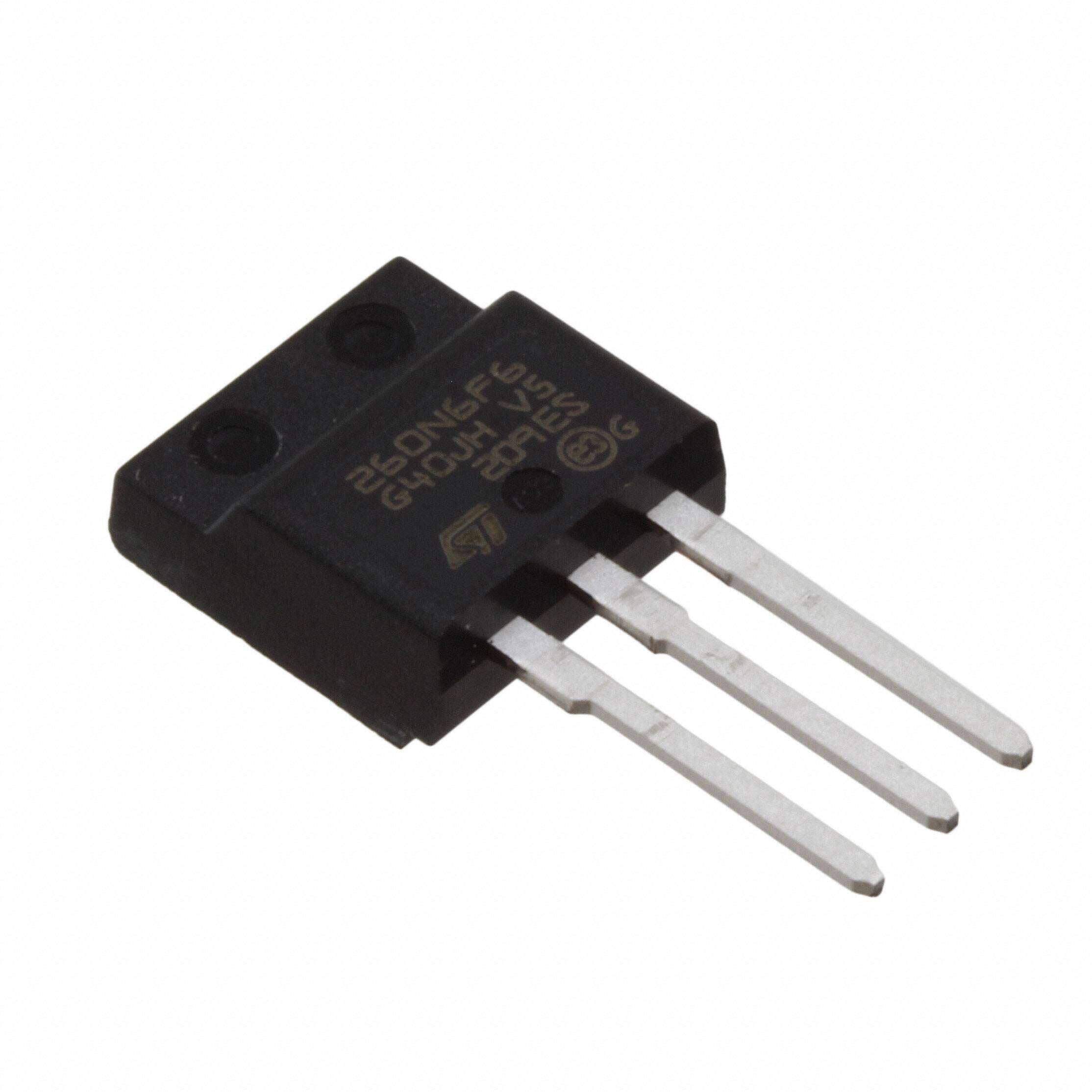

STFI260N6F6
RoHS
RoHS compliant
RoHS compliantPackage TO-262-3 Full Pack, I2Pak
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 60V 80A I2PAKFP
PDF
/
Buying Options
Total Price: USD $3.85
Unit Price: USD $3.8456
≥1 USD $3.8456
≥10 USD $3.046032
≥100 USD $2.61096
Inventory: 340
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 7 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-262-3 Full Pack, I2Pak
Number of Pins 3
Weight 2.240009g
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tube
Series DeepGATE?, STripFET? VI
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Subcategory FET General Purpose Powers
Technology MOSFET (Metal Oxide)
Base Part Number STFI260N
Number of Channels 1
Power Dissipation-Max 41.7W Tc
Element Configuration Single
Turn On Delay Time 31.4 ns
FET Type N-Channel
Rds On (Max) @ Id, Vgs 3m Ω @ 60A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 11400pF @ 25V
Current - Continuous Drain (Id) @ 25°C 80A Tc
Gate Charge (Qg) (Max) @ Vgs 183nC @ 10V
Rise Time 165ns
Drain to Source Voltage (Vdss) 60V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Fall Time (Typ) 62.6 ns
Turn-Off Delay Time 144.4 ns
Continuous Drain Current (ID) 80A
Gate to Source Voltage (Vgs) 20V
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
