STF10N105K5
RoHS
RoHS compliant

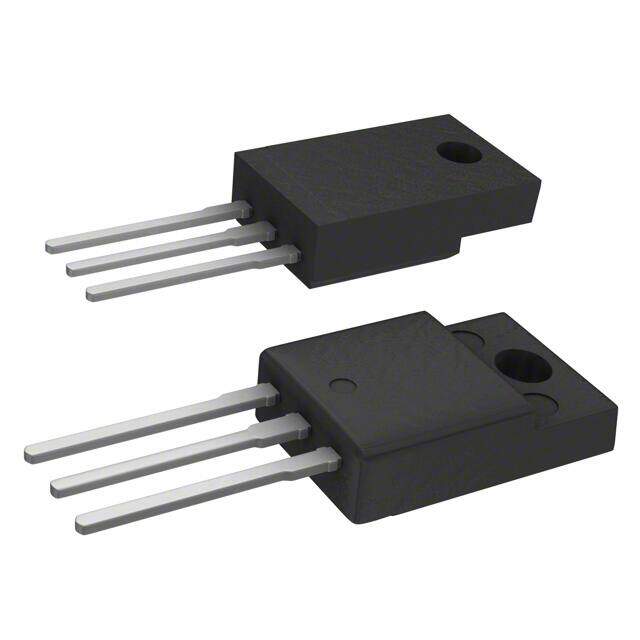

RoHS compliantPackage TO-220-3 Full Pack
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 1050V 6A TO220FP
PDF
/
Buying Options
Total Price: USD $2.94
Unit Price: USD $2.9392
≥1 USD $2.9392
≥10 USD $2.332176
≥100 USD $1.999008
≥500 USD $1.776896
≥1000 USD $1.521458
≥3000 USD $1.432622
Inventory: 82
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Series MDmesh? K5
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number STF10N
Configuration Single
Power Dissipation-Max 30W Tc
FET Type N-Channel
Rds On (Max) @ Id, Vgs 1.3 Ω @ 3A, 10V
Vgs(th) (Max) @ Id 5V @ 100μA
Input Capacitance (Ciss) (Max) @ Vds 545pF @ 100V
Current - Continuous Drain (Id) @ 25°C 6A Tc
Gate Charge (Qg) (Max) @ Vgs 21.5nC @ 10V
Drain to Source Voltage (Vdss) 1050V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) 30V
Continuous Drain Current (ID) 6A
Drain Current-Max (Abs) (ID) 6A
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
