STD19N3LLH6AG
RoHS
RoHS compliant

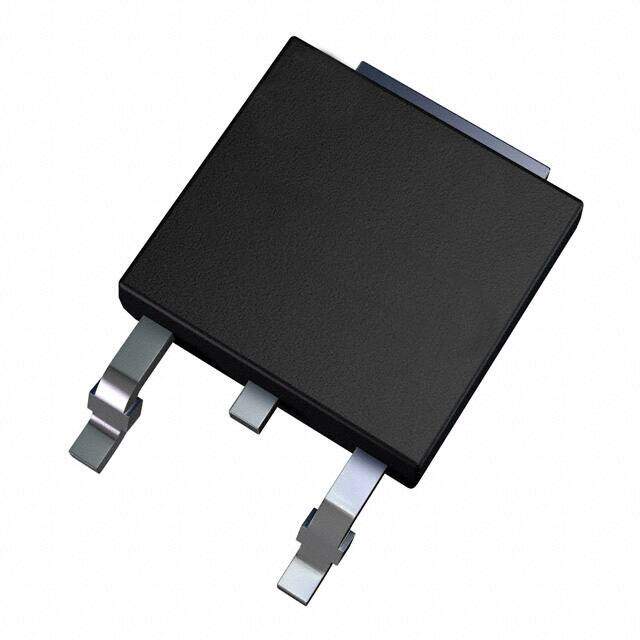

RoHS compliantPackage TO-252-3, DPak (2 Leads + Tab), SC-63
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 30V 10A DPAK
PDF
/
Buying Options
Total Price: USD $13.42
Unit Price: USD $13.42445
≥1 USD $13.42445
≥10 USD $11.01525
≥100 USD $10.6704
≥500 USD $10.3265
≥1000 USD $9.9826
Inventory: 1724
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q101, STripFET?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Technology MOSFET (Metal Oxide)
Avalanche Energy Rating (Eas) 130 mJ
DS Breakdown Voltage-Min 30V
Pulsed Drain Current-Max (IDM) 40A
Drain-source On Resistance-Max 0.05Ohm
Continuous Drain Current (ID) 10A
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 4.5V 10V
Drain to Source Voltage (Vdss) 30V
Gate Charge (Qg) (Max) @ Vgs 3.7nC @ 4.5V
Current - Continuous Drain (Id) @ 25°C 10A Tc
Input Capacitance (Ciss) (Max) @ Vds 321pF @ 25V
Vgs(th) (Max) @ Id 2.5V @ 250μA
Rds On (Max) @ Id, Vgs 33m Ω @ 5A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Case Connection DRAIN
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 30W Tc
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
JESD-30 Code R-PSSO-G2
Base Part Number STD19
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position SINGLE
Compliance
RoHS Status ROHS3 Compliant
