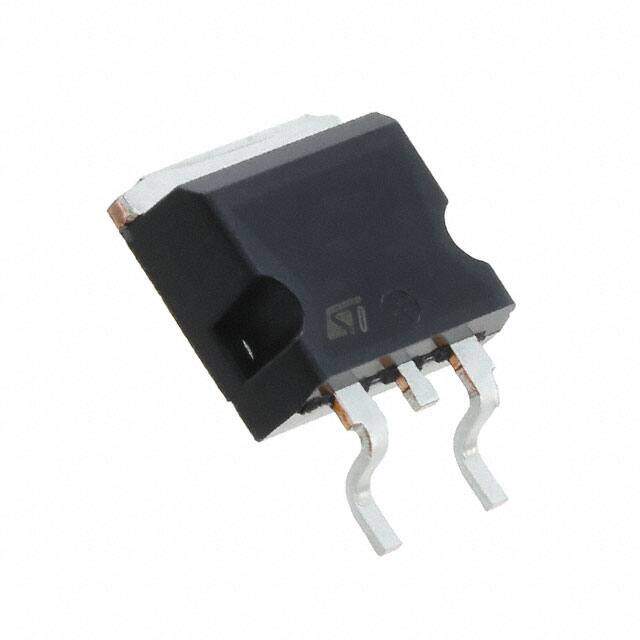

STB8N90K5 image
Favorite
STB8N90K5 image
Favorite
RoHS
/
Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description N-CHANNEL 900 V, 0.60 OHM TYP.,
PDF
/
Buying Options
Total Price: USD $3.01
Unit Price: USD $3.0096
≥1 USD $3.0096
≥10 USD $2.52912
≥100 USD $2.046352
≥500 USD $1.818978
Inventory: 1186
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 900V
Current - Continuous Drain (Id) @ 25°C 8A Tc
Vgs(th) (Max) @ Id 5V @ 100μA
Rds On (Max) @ Id, Vgs 800m Ω @ 1.17A, 10V
FET Type N-Channel
Power Dissipation-Max 130W Tc
Base Part Number STB8N
Technology MOSFET (Metal Oxide)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MDmesh? K5
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ

Physical

Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 26 Weeks
