SCTH90N65G2V-7
RoHS
RoHS compliant

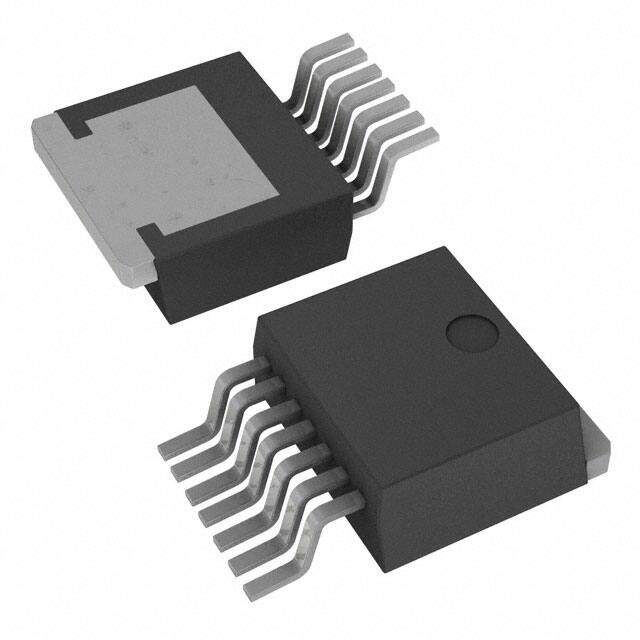

RoHS compliantPackage TO-263-8, D2Pak (7 Leads + Tab), TO-263CA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
SILICON CARBIDE POWER MOSFET 650
PDF
/
Buying Options
Total Price: USD $29.68
Unit Price: USD $29.6824
≥1 USD $29.6824
≥10 USD $26.37448
≥100 USD $23.06832
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
DS Breakdown Voltage-Min 650V
Pulsed Drain Current-Max (IDM) 220A
Drain-source On Resistance-Max 0.024Ohm
Drain Current-Max (Abs) (ID) 110A
Vgs (Max) +22V, -10V
Drive Voltage (Max Rds On,Min Rds On) 18V
Drain to Source Voltage (Vdss) 650V
Gate Charge (Qg) (Max) @ Vgs 157nC @ 18V
Current - Continuous Drain (Id) @ 25°C 90A Tc
Input Capacitance (Ciss) (Max) @ Vds 3300pF @ 400V
Vgs(th) (Max) @ Id 5V @ 1mA
Rds On (Max) @ Id, Vgs 26m Ω @ 50A, 18V
Transistor Application SWITCHING
FET Type N-Channel
Case Connection DRAIN
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 330W Tc
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
JESD-30 Code R-PSSO-G7
Base Part Number SCTH90
Terminal Form GULL WING
Terminal Position SINGLE
Technology SiCFET (Silicon Carbide)
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -55°C~175°C TJ
Physical
Surface Mount YES
Package / Case TO-263-8, D2Pak (7 Leads + Tab), TO-263CA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
