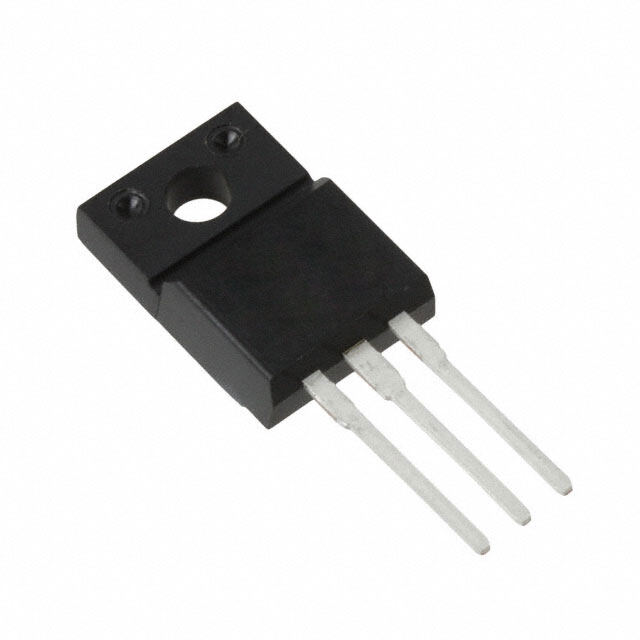

GP2M010A065F image
Favorite
GP2M010A065F image
Favorite

GP2M010A065F

SemiQ
RoHS
/
Package TO-220-3 Full Pack
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description MOSFET N-CH 650V 9.5A TO220F
PDF
/
Inventory: 1992
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 650V
Gate Charge (Qg) (Max) @ Vgs 36nC @ 10V
Current - Continuous Drain (Id) @ 25°C 9.5A Tc
Input Capacitance (Ciss) (Max) @ Vds 1670pF @ 25V
Vgs(th) (Max) @ Id 5V @ 250μA
Rds On (Max) @ Id, Vgs 820mOhm @ 4.75A, 10V
FET Type N-Channel
Power Dissipation-Max 52W Tc
Technology MOSFET (Metal Oxide)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tube
Operating Temperature -55°C~150°C TJ

Physical

Supplier Device Package TO-220F
Package / Case TO-220-3 Full Pack
Mounting Type Through Hole
