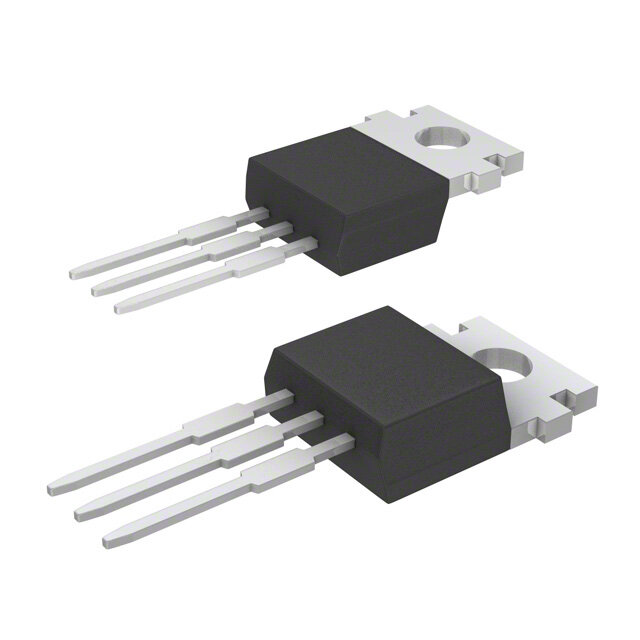

GP1M010A080H
RoHS
/
Package TO-220-3
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 800V 9.5A TO220
PDF
/
Inventory: 1740
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology MOSFET (Metal Oxide)
Power Dissipation-Max 290W Tc
FET Type N-Channel
Rds On (Max) @ Id, Vgs 1.05Ohm @ 4.75A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 2336pF @ 25V
Current - Continuous Drain (Id) @ 25°C 9.5A Tc
Gate Charge (Qg) (Max) @ Vgs 53nC @ 10V
Drain to Source Voltage (Vdss) 800V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±30V
