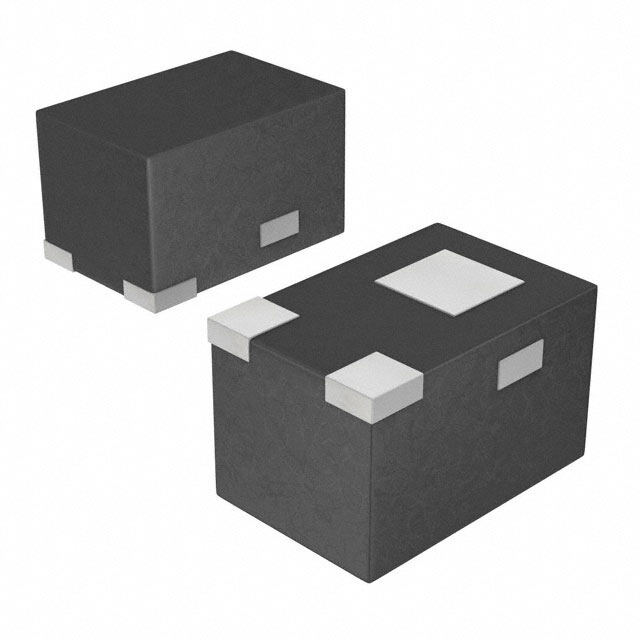

RV3CA01ZPT2CL
RoHS
RoHS compliant
RoHS compliantPackage 3-XFDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
RV3CA01ZP IS THE 0604 SIZE ULTRA
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.39864
≥100 USD $0.277288
≥500 USD $0.216515
≥1000 USD $0.175982
≥3000 USD $0.157318
Inventory: 1157
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 3-XFDFN
Surface Mount YES
Transistor Element Material SILICON
Technical
Operating Temperature 150°C TJ
Packaging Cut Tape (CT)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Technology MOSFET (Metal Oxide)
Terminal Position BOTTOM
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PBCC-N3
Number of Elements 1
Configuration SINGLE WITH BUILT-IN DIODE AND RESISTOR
Power Dissipation-Max 100mW Ta
Operating Mode ENHANCEMENT MODE
Case Connection DRAIN
FET Type P-Channel
Rds On (Max) @ Id, Vgs 3.8 Ω @ 100mA, 4.5V
Vgs(th) (Max) @ Id 1V @ 100μA
Input Capacitance (Ciss) (Max) @ Vds 7.5pF @ 10V
Current - Continuous Drain (Id) @ 25°C 100mA Ta
Drain to Source Voltage (Vdss) 20V
Drive Voltage (Max Rds On,Min Rds On) 1.5V 4.5V
Vgs (Max) ±10V
Drain Current-Max (Abs) (ID) 0.1A
Drain-source On Resistance-Max 5.1Ohm
DS Breakdown Voltage-Min 20V
Compliance
RoHS Status ROHS3 Compliant
