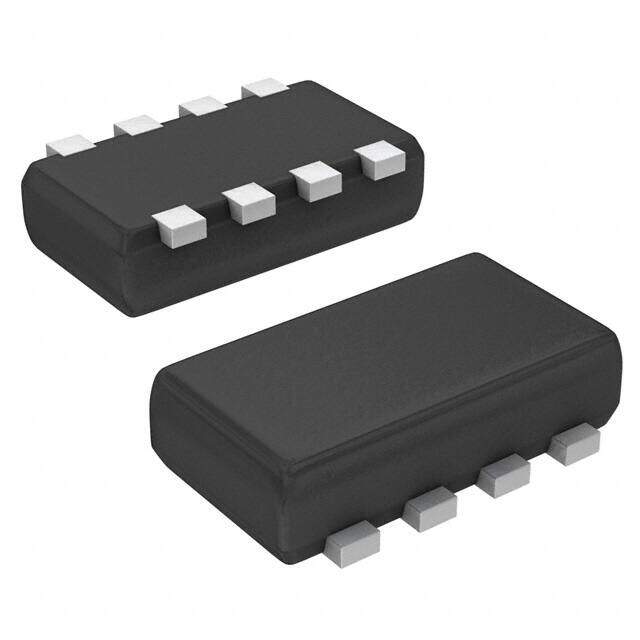

RT1E050RPTR
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD, Flat Lead
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET P-CH 30V 5A TSST8
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.26885
≥1 USD $0.26885
≥10 USD $0.2204
≥100 USD $0.21375
≥500 USD $0.2071
≥1000 USD $0.20045
Inventory: 1212
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
DS Breakdown Voltage-Min 30V
Pulsed Drain Current-Max (IDM) 20A
Drain-source On Resistance-Max 0.036Ohm
Drain Current-Max (Abs) (ID) 5A
Continuous Drain Current (ID) 5A
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 4V 10V
Drain to Source Voltage (Vdss) 30V
Gate Charge (Qg) (Max) @ Vgs 13nC @ 5V
Current - Continuous Drain (Id) @ 25°C 5A Ta
Input Capacitance (Ciss) (Max) @ Vds 1300pF @ 10V
Vgs(th) (Max) @ Id 2.5V @ 1mA
Rds On (Max) @ Id, Vgs 36m Ω @ 5A, 10V
Transistor Application SWITCHING
FET Type P-Channel
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 1.25W Ta
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PDSO-F8
Pin Count 8
Time@Peak Reflow Temperature-Max (s) 10
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Subcategory Other Transistors
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Pbfree Code yes
Published 2010
Packaging Cut Tape (CT)
Operating Temperature 150°C TJ
Physical
Transistor Element Material SILICON
Package / Case 8-SMD, Flat Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
