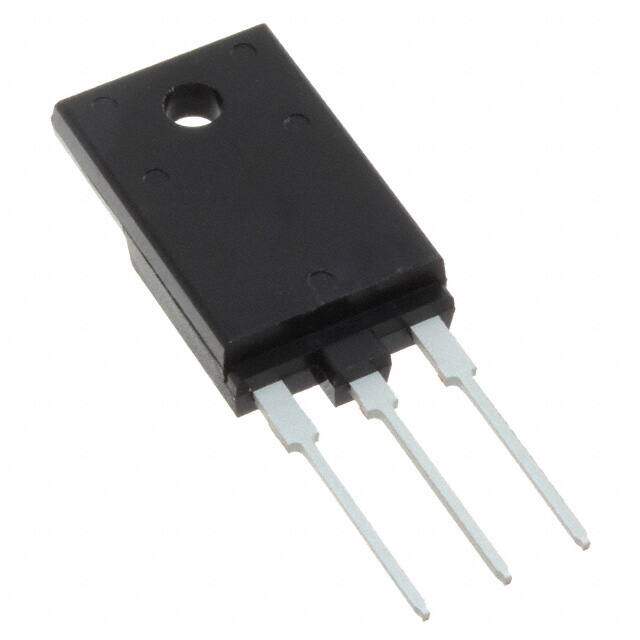

R6015KNZC8
RoHS
RoHS compliant
RoHS compliantPackage TO-3P-3 Full Pack
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CHANNEL 600V 15A TO3PF
PDF
/
Inventory: 6837
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Avalanche Energy Rating (Eas) 284 mJ
DS Breakdown Voltage-Min 600V
Pulsed Drain Current-Max (IDM) 45A
Drain-source On Resistance-Max 0.29Ohm
Drain Current-Max (Abs) (ID) 15A
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 600V
Gate Charge (Qg) (Max) @ Vgs 27.5nC @ 10V
Current - Continuous Drain (Id) @ 25°C 15A Tc
Input Capacitance (Ciss) (Max) @ Vds 1050pF @ 25V
Vgs(th) (Max) @ Id 5V @ 1mA
Rds On (Max) @ Id, Vgs 290m Ω @ 6.5A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Case Connection ISOLATED
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 60W Tc
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
JESD-30 Code R-PSFM-T3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology MOSFET (Metal Oxide)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Surface Mount NO
Package / Case TO-3P-3 Full Pack
Mounting Type Through Hole
Supply Chain
Factory Lead Time 15 Weeks
