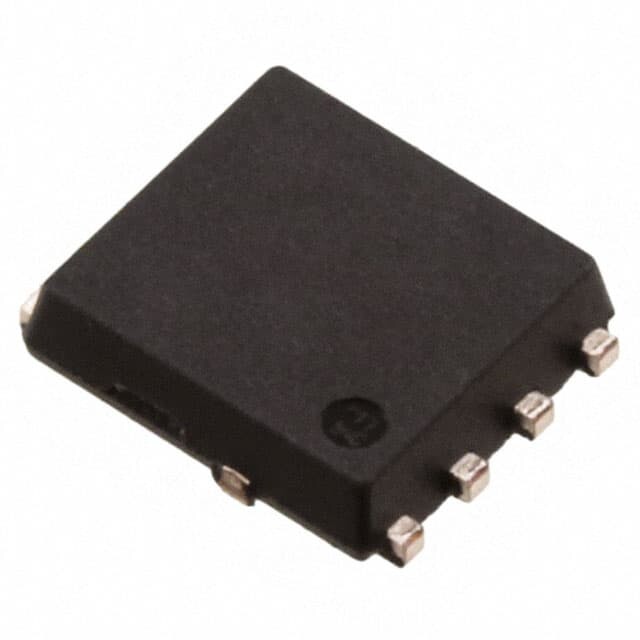

NP35N04YUG-E1-AY
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD, Flat Lead Exposed Pad
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Trans MOSFET N-CH 40V 35A Automotive 8-Pin HSON T/R
PDF
/
Buying Options
Total Price: USD $1.47
Unit Price: USD $1.4696
≥1 USD $1.4696
Inventory: 1129
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Feedback Cap-Max (Crss) 220 pF
DS Breakdown Voltage-Min 40V
Drain-source On Resistance-Max 0.01Ohm
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 35A
Turn-Off Delay Time 38 ns
Fall Time (Typ) 5 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 40V
Rise Time 10ns
Gate Charge (Qg) (Max) @ Vgs 54nC @ 10V
Current - Continuous Drain (Id) @ 25°C 35A Tc
Input Capacitance (Ciss) (Max) @ Vds 2850pF @ 25V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 10m Ω @ 17.5A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 18 ns
Case Connection DRAIN
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 1W Ta 77W Tc
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
JESD-30 Code R-PDSO-F5
Pin Count 8
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Power
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature 175°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 8
Package / Case 8-SMD, Flat Lead Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
