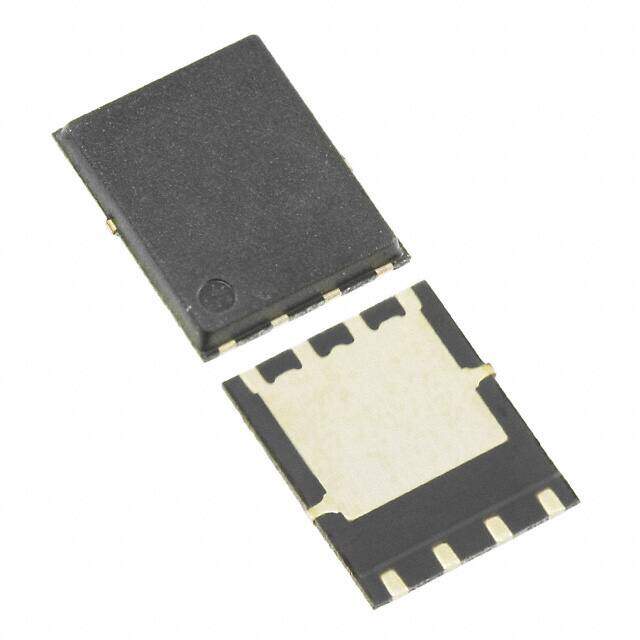

HAT2185WPWS-E image
Favorite
HAT2185WPWS-E image
Favorite
RoHS
/
Package 8-PowerWDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description MOSFET N-PAK WPAK
PDF
/
Inventory: 7987
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 150V
Gate Charge (Qg) (Max) @ Vgs 9.7nC @ 10V
Current - Continuous Drain (Id) @ 25°C 10A Ta
Input Capacitance (Ciss) (Max) @ Vds 430pF @ 25V
Vgs(th) (Max) @ Id 4.5V @ 1mA
Rds On (Max) @ Id, Vgs 190m Ω @ 5A, 10V
FET Type N-Channel
Power Dissipation-Max 20W Tc
Technology MOSFET (Metal Oxide)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tape & Reel (TR)
Operating Temperature 150°C

Physical

Package / Case 8-PowerWDFN
Mounting Type Surface Mount
