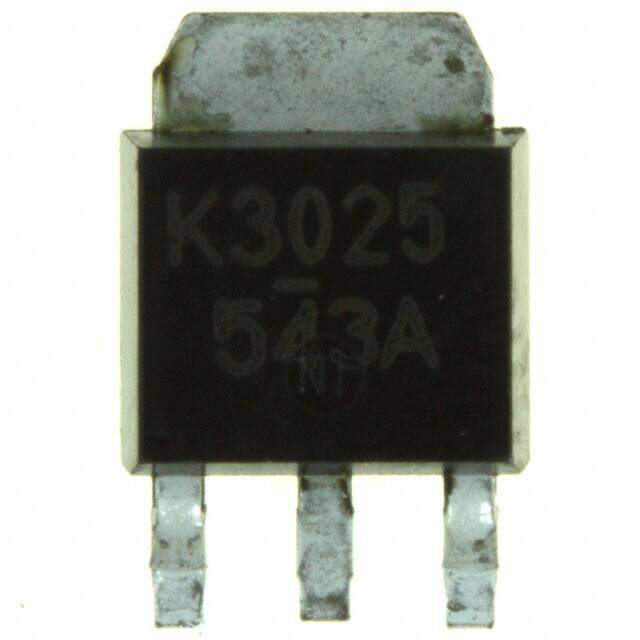

2SK302500L
RoHS
/
Package TO-252-4, DPak (3 Leads + Tab)
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 60V 30A UG-2
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.14035
≥1 USD $2.14035
≥10 USD $1.75655
≥100 USD $1.70145
≥500 USD $1.64635
≥1000 USD $1.5922
Inventory: 47901
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Rds On Max 40 mΩ
Input Capacitance 1.2nF
Continuous Drain Current (ID) 30A
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 4V 10V
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 30A Tc
Input Capacitance (Ciss) (Max) @ Vds 1200pF @ 10V
Vgs(th) (Max) @ Id 2.5V @ 1mA
Rds On (Max) @ Id, Vgs 40mOhm @ 15A, 10V
FET Type N-Channel
Power Dissipation-Max 1W Ta 25W Tc
Current Rating 30A
Technology MOSFET (Metal Oxide)
Voltage - Rated DC 60V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature 150°C TJ
Physical
Supplier Device Package U-DL
Package / Case TO-252-4, DPak (3 Leads + Tab)
Mounting Type Surface Mount
Mount Surface Mount
