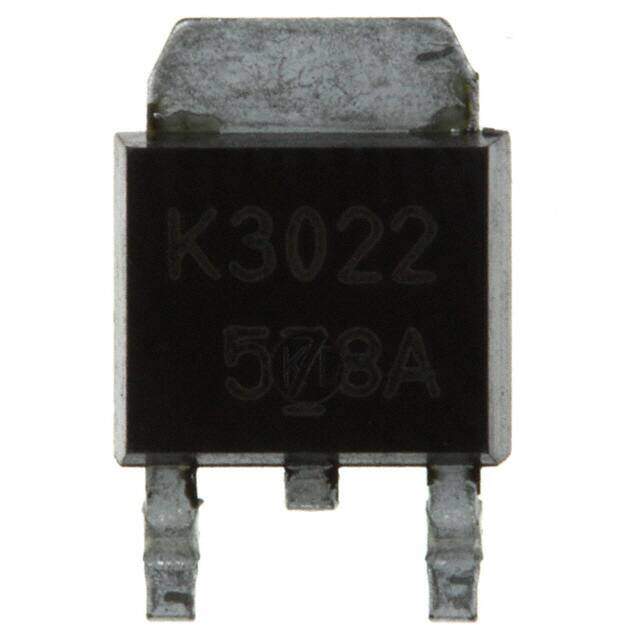

2SK302200L
RoHS
/
Package TO-252-3, DPak (2 Leads + Tab), SC-63
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 60V 5A UG-2
PDF
/
Inventory: 5284
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package U-G2
Technical
Operating Temperature 150°C TJ
Packaging Tape & Reel (TR)
Published 2008
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated DC 60V
Technology MOSFET (Metal Oxide)
Current Rating 5A
Power Dissipation-Max 1W Ta 10W Tc
FET Type N-Channel
Rds On (Max) @ Id, Vgs 130mOhm @ 3A, 10V
Vgs(th) (Max) @ Id 2.5V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds 220pF @ 10V
Current - Continuous Drain (Id) @ 25°C 5A Tc
Drain to Source Voltage (Vdss) 60V
Drive Voltage (Max Rds On,Min Rds On) 4V 10V
Vgs (Max) ±20V
Continuous Drain Current (ID) 5A
Input Capacitance 220pF
Rds On Max 130 mΩ
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
