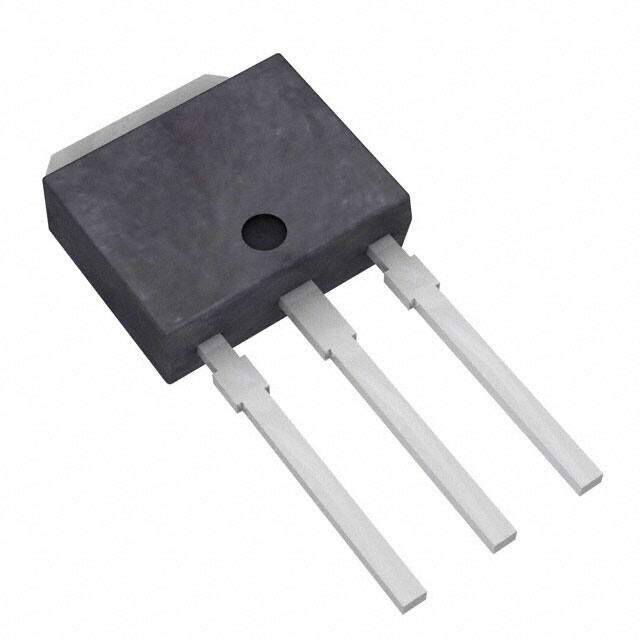

SFT1423-E
RoHS
/
Package TO-251-3 Short Leads, IPak, TO-251AA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 500V 2A TP
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.559145
≥1 USD $0.559145
≥10 USD $0.5275
≥100 USD $0.497636
≥500 USD $0.469468
≥1000 USD $0.442893
Inventory: 1403
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case TO-251-3 Short Leads, IPak, TO-251AA
Surface Mount NO
Number of Pins 3
Technical
Operating Temperature 150°C TJ
Packaging Bulk
Published 2013
JESD-609 Code e6
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin/Bismuth (Sn/Bi)
Subcategory FET General Purpose Powers
Technology MOSFET (Metal Oxide)
Pin Count 3
Number of Elements 1
Power Dissipation-Max 1W Ta 20W Tc
Element Configuration Single
Power Dissipation 1W
Turn On Delay Time 7.4 ns
FET Type N-Channel
Rds On (Max) @ Id, Vgs 4.9 Ω @ 1A, 10V
Input Capacitance (Ciss) (Max) @ Vds 175pF @ 30V
Current - Continuous Drain (Id) @ 25°C 2A Ta
Gate Charge (Qg) (Max) @ Vgs 8.7nC @ 10V
Rise Time 8.8ns
Drive Voltage (Max Rds On,Min Rds On) 4V 10V
Vgs (Max) ±20V
Fall Time (Typ) 27 ns
Turn-Off Delay Time 42 ns
Continuous Drain Current (ID) 2A
Gate to Source Voltage (Vgs) 20V
Drain Current-Max (Abs) (ID) 2A
Drain to Source Breakdown Voltage 500V
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
