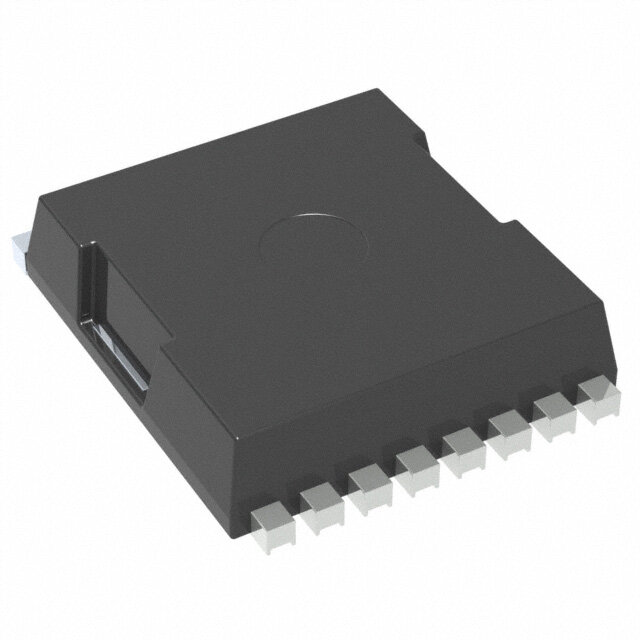

NVBLS0D5N04M8TXG
RoHS
/
Package 8-PowerSFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
NMOS TOLL 40V 0.65 MOHM
PDF
/
Buying Options
Total Price: USD $3.7
Unit Price: USD $3.701911
≥1 USD $3.701911
≥10 USD $3.492369
≥100 USD $3.29469
≥500 USD $3.108193
≥1000 USD $2.932259
Inventory: 915
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 40V
Gate Charge (Qg) (Max) @ Vgs 296nC @ 10V
Current - Continuous Drain (Id) @ 25°C 300A Tc
Input Capacitance (Ciss) (Max) @ Vds 15900pF @ 25V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 0.57m Ω @ 80A, 10V
FET Type N-Channel
Power Dissipation-Max 429W Tj
Technology MOSFET (Metal Oxide)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Pbfree Code yes
Series Automotive, AEC-Q101
Packaging Tape & Reel (TR)
Operating Temperature -55°C~175°C TJ
Physical
Package / Case 8-PowerSFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 4 Weeks
