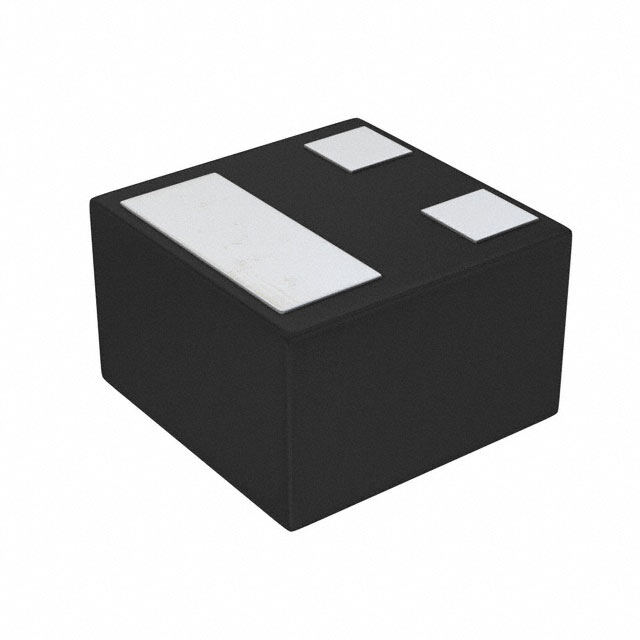

NTNS3A91PZT5G
RoHS
RoHS compliant
RoHS compliantPackage 3-XFLGA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET PFET XLLGA3 20V 2A 1.6OHM
PDF
/
Buying Options
Total Price: USD $0.29
Unit Price: USD $0.293087
≥1 USD $0.293087
≥10 USD $0.276493
≥100 USD $0.260841
≥500 USD $0.246075
≥1000 USD $0.232151
Inventory: 1077
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Gate to Source Voltage (Vgs) 8V
Continuous Drain Current (ID) 223mA
Turn-Off Delay Time 571 ns
Fall Time (Typ) 286 ns
Vgs (Max) ±8V
Drive Voltage (Max Rds On,Min Rds On) 1.5V 4.5V
Drain to Source Voltage (Vdss) 20V
Rise Time 97ns
Gate Charge (Qg) (Max) @ Vgs 1.1nC @ 4.5V
Current - Continuous Drain (Id) @ 25°C 223mA Ta
Input Capacitance (Ciss) (Max) @ Vds 41pF @ 15V
Vgs(th) (Max) @ Id 1V @ 250μA
Rds On (Max) @ Id, Vgs 1.6 Ω @ 100mA, 4.5V
FET Type P-Channel
Turn On Delay Time 41 ns
Element Configuration Single
Power Dissipation-Max 121mW Ta
Number of Elements 1
Pin Count 3
Technology MOSFET (Metal Oxide)
Subcategory Other Transistors
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Number of Pins 3
Surface Mount YES
Package / Case 3-XFLGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 2 Weeks
