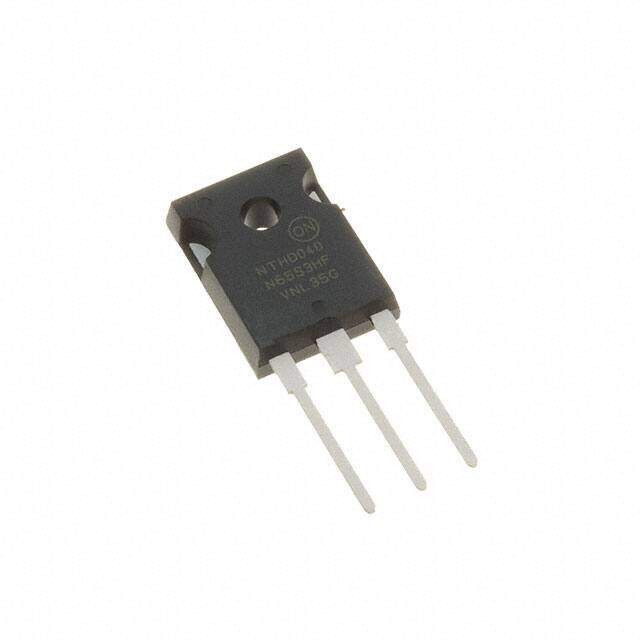

NTHLD040N65S3HF
RoHS
RoHS compliant
RoHS compliantPackage TO-247-3
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
FET 650V 65A TO247AD
PDF
/
Buying Options
Total Price: USD $14.72
Unit Price: USD $14.715617
≥1 USD $14.715617
≥10 USD $13.882662
≥100 USD $13.096845
≥500 USD $12.355517
≥1000 USD $11.656146
Inventory: 2668
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Through Hole
Package / Case TO-247-3
Technical
Operating Temperature -55°C~150°C TJ
Series FRFET?, SuperFET? III
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Terminal Finish Tin (Sn)
Technology MOSFET (Metal Oxide)
Power Dissipation-Max 446W Tc
FET Type N-Channel
Rds On (Max) @ Id, Vgs 40m Ω @ 32.5A, 10V
Vgs(th) (Max) @ Id 5V @ 2.1mA
Input Capacitance (Ciss) (Max) @ Vds 5945pF @ 400V
Current - Continuous Drain (Id) @ 25°C 65A Tc
Gate Charge (Qg) (Max) @ Vgs 159nC @ 10V
Drain to Source Voltage (Vdss) 650V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±30V
Compliance
RoHS Status ROHS3 Compliant
