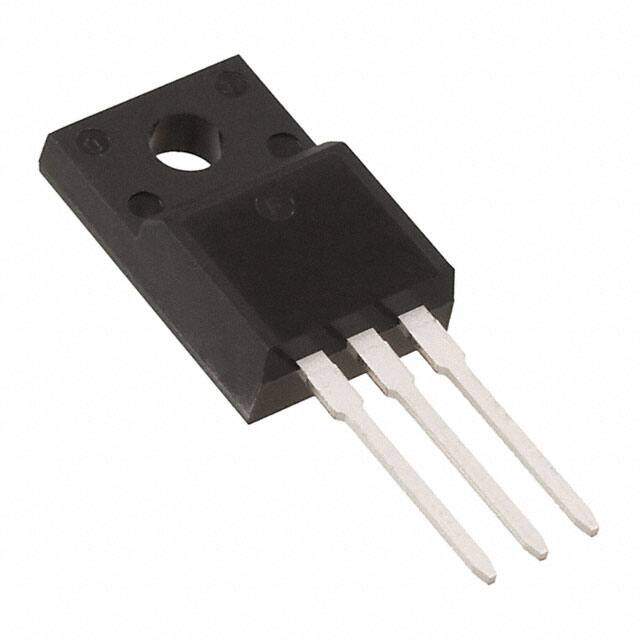

NDFP03N150CG
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3 Full Pack
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 1500V 2.5A TO220
PDF
/
Buying Options
Total Price: USD $2.28
Unit Price: USD $2.28285
≥1 USD $2.28285
≥10 USD $1.87245
≥100 USD $1.8145
≥500 USD $1.7556
≥1000 USD $1.69765
Inventory: 112864
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack
Number of Pins 3
Weight 6.000006g
Technical
Operating Temperature 150°C TJ
Packaging Tube
Published 2000
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin (Sn)
Technology MOSFET (Metal Oxide)
Number of Channels 1
Power Dissipation-Max 2W Ta 32W Tc
Element Configuration Single
Turn On Delay Time 15 ns
FET Type N-Channel
Rds On (Max) @ Id, Vgs 10.5 Ω @ 1A, 10V
Input Capacitance (Ciss) (Max) @ Vds 650pF @ 30V
Current - Continuous Drain (Id) @ 25°C 2.5A Ta
Gate Charge (Qg) (Max) @ Vgs 34nC @ 10V
Rise Time 20ns
Drain to Source Voltage (Vdss) 1500V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±30V
Fall Time (Typ) 44 ns
Turn-Off Delay Time 148 ns
Continuous Drain Current (ID) 2.5A
Gate to Source Voltage (Vgs) 30V
Drain to Source Breakdown Voltage 1.5kV
Dimensions
Height 4.7mm
Length 28.85mm
Width 10.16mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
