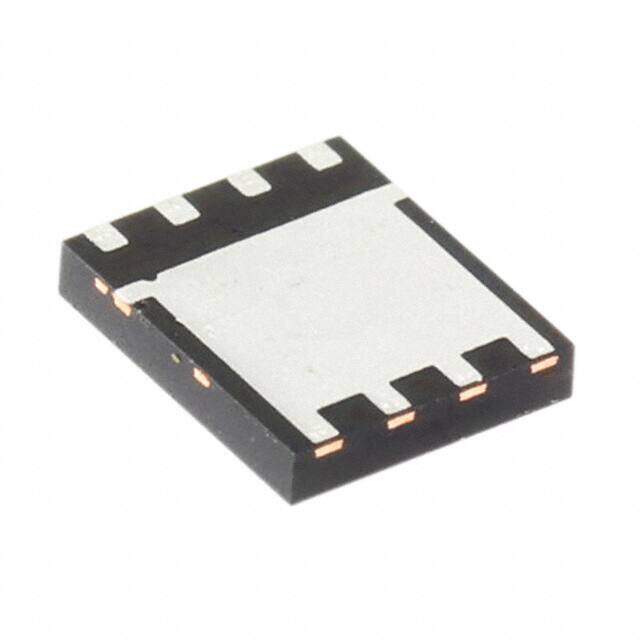

FDMS86152
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerTDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET 100V N-Channel Power Trench MOSFET
PDF
/
Buying Options
Total Price: USD $4.3
Unit Price: USD $4.3032
≥1 USD $4.3032
≥10 USD $3.61504
≥100 USD $2.92468
≥500 USD $2.599696
≥1000 USD $2.225995
Inventory: 1274
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Pulsed Drain Current-Max (IDM) 260A
Drain to Source Breakdown Voltage 100V
Drain-source On Resistance-Max 0.006Ohm
Gate to Source Voltage (Vgs) 20V
JEDEC-95 Code MO-240AA
Continuous Drain Current (ID) 45A
Turn-Off Delay Time 25 ns
Fall Time (Typ) 5 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 6V 10V
Rise Time 6 ns
Gate Charge (Qg) (Max) @ Vgs 50nC @ 10V
Current - Continuous Drain (Id) @ 25°C 14A Ta 45A Tc
Input Capacitance (Ciss) (Max) @ Vds 3370pF @ 50V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 6m Ω @ 14A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 17 ns
Case Connection DRAIN
Power Dissipation 2.7W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 2.7W Ta 125W Tc
Number of Elements 1
JESD-30 Code R-PDSO-N5
Time@Peak Reflow Temperature-Max (s) 30
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Power
Terminal Finish TIN
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series PowerTrench?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Weight 56.5mg
Number of Pins 8
Package / Case 8-PowerTDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 12 Weeks
Alternative Model
