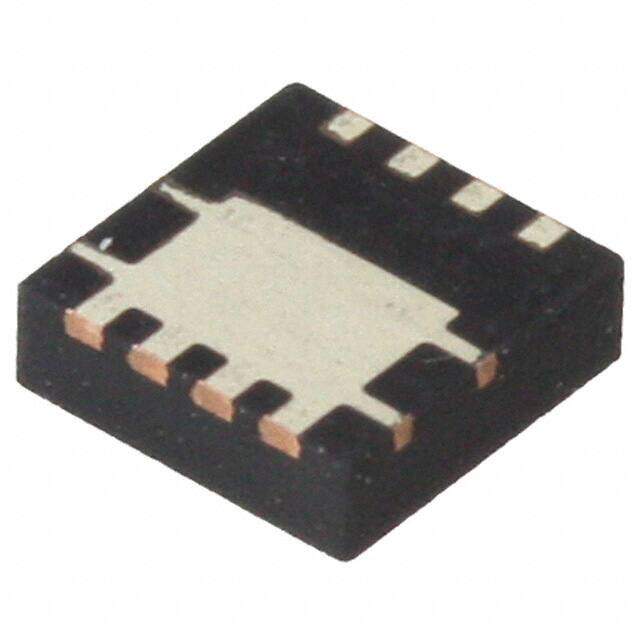

FDMC8622
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerWDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
N-Channel Shielded Gate Power Trench? MOSFET 100V, 16A, 56mO
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.3904
≥1 USD $1.3904
≥10 USD $1.13872
≥100 USD $0.885456
≥500 USD $0.750534
≥1000 USD $0.611389
Inventory: 17669
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-PowerWDFN
Number of Pins 8
Weight 200mg
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Series PowerTrench?
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Additional Feature ULTRA-LOW RESISTANCE
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Terminal Position DUAL
Terminal Form FLAT
JESD-30 Code R-PDSO-F5
Number of Elements 1
Power Dissipation-Max 2.5W Ta 31W Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 31W
Case Connection DRAIN
Turn On Delay Time 5.9 ns
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 56m Ω @ 4A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 402pF @ 50V
Current - Continuous Drain (Id) @ 25°C 4A Ta 16A Tc
Gate Charge (Qg) (Max) @ Vgs 7.3nC @ 10V
Rise Time 1.6 ns
Drive Voltage (Max Rds On,Min Rds On) 6V 10V
Vgs (Max) ±20V
Fall Time (Typ) 2.2 ns
Turn-Off Delay Time 10.2 ns
Continuous Drain Current (ID) 16A
Threshold Voltage 2.9V
JEDEC-95 Code MO-240BA
Gate to Source Voltage (Vgs) 20V
Drain Current-Max (Abs) (ID) 4A
Drain-source On Resistance-Max 0.056Ohm
Drain to Source Breakdown Voltage 100V
Pulsed Drain Current-Max (IDM) 30A
Avalanche Energy Rating (Eas) 37 mJ
Nominal Vgs 2.9 V
Dimensions
Height 750μm
Length 3.3mm
Width 3.3mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
