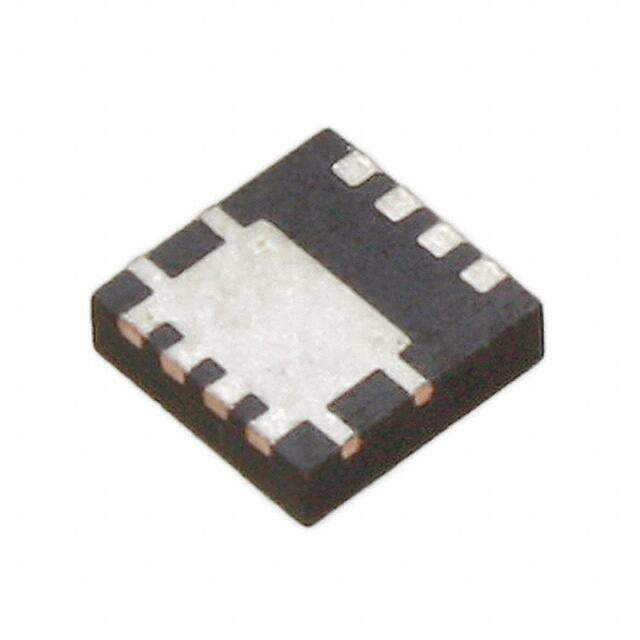

FDMC7660DC
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerTDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 30V 40A POWER33
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.5224
≥1 USD $1.5224
≥10 USD $1.2628
≥100 USD $1.005224
≥500 USD $0.850573
≥1000 USD $0.721706
Inventory: 1107
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-PowerTDFN
Number of Pins 8
Weight 32.13mg
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Series Dual Cool?, PowerTrench?
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Resistance 2.2MOhm
Terminal Finish Tin (Sn)
Additional Feature ULTRA-LOW RESISTANCE
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
JESD-30 Code S-PDSO-N5
Number of Elements 1
Power Dissipation-Max 3W Ta 78W Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 78W
Case Connection DRAIN
Turn On Delay Time 17 ns
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 2.2m Ω @ 22A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 5170pF @ 15V
Current - Continuous Drain (Id) @ 25°C 30A Ta 40A Tc
Gate Charge (Qg) (Max) @ Vgs 76nC @ 10V
Rise Time 6.6 ns
Drive Voltage (Max Rds On,Min Rds On) 4.5V 10V
Vgs (Max) ±20V
Fall Time (Typ) 5 ns
Turn-Off Delay Time 36 ns
Continuous Drain Current (ID) 30A
JEDEC-95 Code MO-240BA
Gate to Source Voltage (Vgs) 20V
Drain Current-Max (Abs) (ID) 40A
Drain to Source Breakdown Voltage 30V
Pulsed Drain Current-Max (IDM) 200A
Avalanche Energy Rating (Eas) 220 mJ
Nominal Vgs 2 V
Dimensions
Height 950μm
Length 3.3mm
Width 3.3mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
