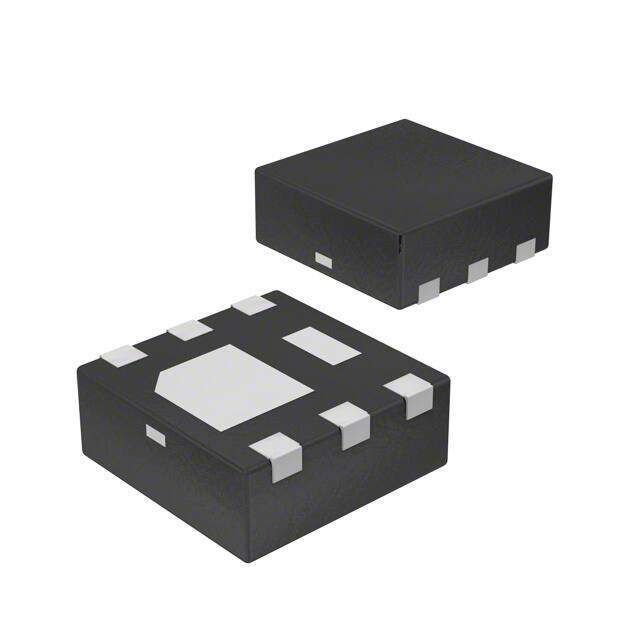

FDMA0104
RoHS
/
Package 6-WDFN Exposed Pad
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET 20V Single NCh PowerTrench
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
Inventory: 1367
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 2mm
Length 2mm
Height 750μm
Technical
Rds On Max 14.5 mΩ
Drain to Source Resistance 14.5mOhm
Input Capacitance 1.68nF
Drain to Source Breakdown Voltage 20V
Gate to Source Voltage (Vgs) 8V
Continuous Drain Current (ID) 9.4A
Turn-Off Delay Time 37 ns
Fall Time (Typ) 6 ns
Drain to Source Voltage (Vdss) 20V
Rise Time 6ns
Gate Charge (Qg) (Max) @ Vgs 17.5nC @ 4.5V
Current - Continuous Drain (Id) @ 25°C 9.4A Ta
Input Capacitance (Ciss) (Max) @ Vds 1680pF @ 10V
Vgs(th) (Max) @ Id 1V @ 250μA
Rds On (Max) @ Id, Vgs 14.5mOhm @ 9.4A, 4.5V
FET Type N-Channel
Turn On Delay Time 9 ns
Power Dissipation 700mW
Element Configuration Single
Power Dissipation-Max 1.9W Ta
Number of Elements 1
Technology MOSFET (Metal Oxide)
Min Operating Temperature -55°C
Max Operating Temperature 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series PowerTrench?
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Weight 30mg
Supplier Device Package 6-MicroFET (2x2)
Number of Pins 6
Package / Case 6-WDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
