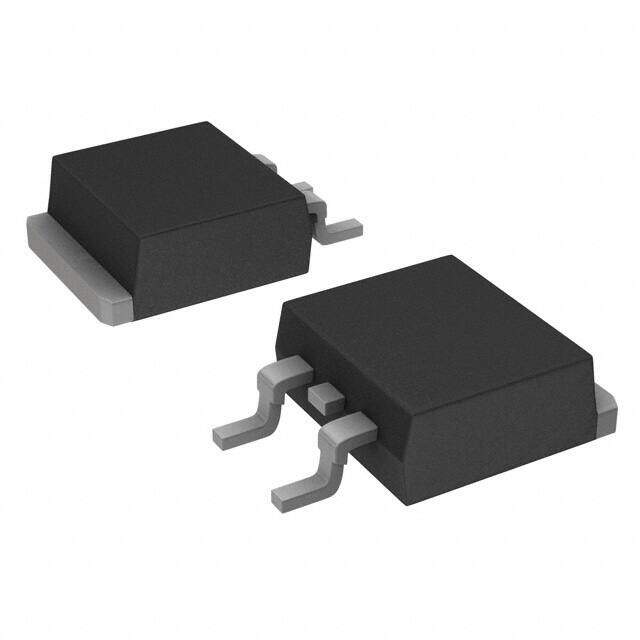

BBS3002-TL-1E
RoHS
RoHS compliant
RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET P-CH 60V 100A
PDF
/
Buying Options
Total Price: USD $2.36
Unit Price: USD $2.360594
≥1 USD $2.360594
≥10 USD $2.161033
≥30 USD $2.037621
≥100 USD $1.91027
≥500 USD $1.852502
≥800 USD $1.827557
Inventory: 1155
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 5.08mm
Technical
Max Junction Temperature (Tj) 150°C
Avalanche Energy Rating (Eas) 340 mJ
Pulsed Drain Current-Max (IDM) 400A
Drain to Source Breakdown Voltage -60V
Drain-source On Resistance-Max 0.009Ohm
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) -100A
Turn-Off Delay Time 800 ns
Fall Time (Typ) 820 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 4V 10V
Drain to Source Voltage (Vdss) 60V
Rise Time 1 μs
Gate Charge (Qg) (Max) @ Vgs 280nC @ 10V
Current - Continuous Drain (Id) @ 25°C 100A Ta
Input Capacitance (Ciss) (Max) @ Vds 13200pF @ 20V
Rds On (Max) @ Id, Vgs 5.8m Ω @ 50A, 10V
FET Type P-Channel
Turn On Delay Time 95 ns
Case Connection DRAIN
Power Dissipation 90W
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 90W Tc
Number of Channels 1
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
Pin Count 2
Reach Compliance Code not_compliant
Terminal Form GULL WING
Terminal Position SINGLE
Technology MOSFET (Metal Oxide)
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 1999
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Weight 2.084002g
Number of Pins 2
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 10 Weeks
Alternative Model
