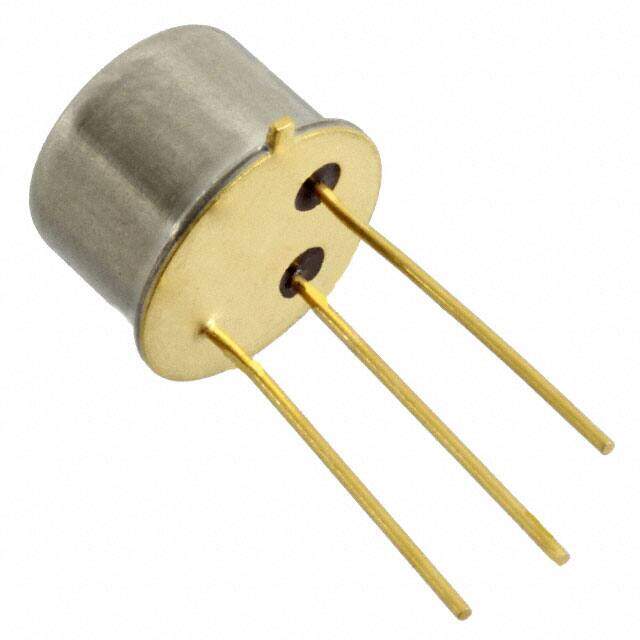

VN2210N2
RoHS
/
Package TO-205AD, TO-39-3 Metal Can
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Trans MOSFET N-CH 100V 1.7A 3-Pin TO-39
PDF
/
Buying Options
Total Price: USD $14.85
Unit Price: USD $14.8456
≥1 USD $14.8456
≥10 USD $13.6136
≥100 USD $12.3288
Inventory: 709
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-205AD, TO-39-3 Metal Can
Number of Pins 3
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Bulk
Published 2011
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish NICKEL GOLD
Additional Feature HIGH INPUT IMPEDANCE
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Terminal Position BOTTOM
Terminal Form WIRE
Number of Elements 1
Number of Channels 1
Power Dissipation-Max 360mW Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 6W
Case Connection DRAIN
Turn On Delay Time 10 ns
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 350m Ω @ 4A, 10V
Vgs(th) (Max) @ Id 2.4V @ 10mA
Input Capacitance (Ciss) (Max) @ Vds 500pF @ 25V
Current - Continuous Drain (Id) @ 25°C 1.7A Tj
Rise Time 10 ns
Drive Voltage (Max Rds On,Min Rds On) 5V 10V
Vgs (Max) ±20V
Fall Time (Typ) 30 ns
Turn-Off Delay Time 50 ns
Continuous Drain Current (ID) 1.7A
Gate to Source Voltage (Vgs) 20V
Drain to Source Breakdown Voltage 100V
Feedback Cap-Max (Crss) 65 pF
Dimensions
Height 6.6mm
Length 9.4mm
Width 9.4mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
