2N6661
RoHS
/

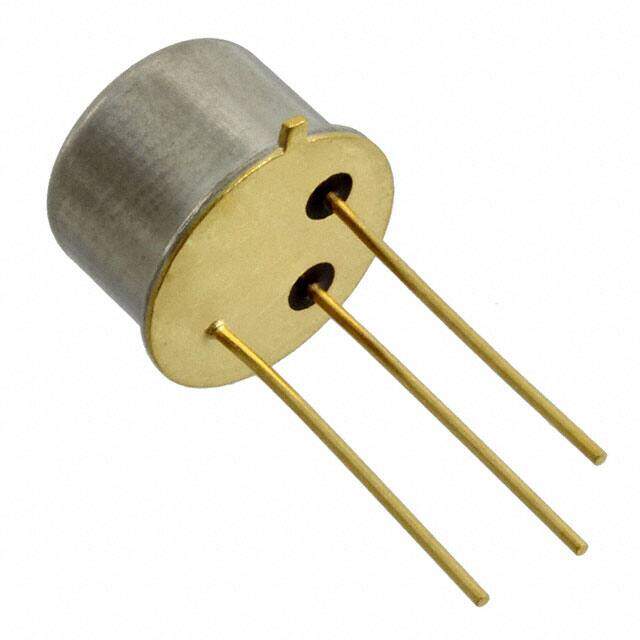

Package TO-205AD, TO-39-3 Metal Can
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 90V 350MA 3TO-39
PDF
/
Buying Options
Total Price: USD $13.99
Unit Price: USD $13.992
≥1 USD $13.992
≥10 USD $12.8216
≥100 USD $12.353
Inventory: 123
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height 6.604mm
Technical
Ambient Temperature Range High 150°C
Rds On Max 4 Ω
Drain to Source Resistance 4Ohm
Input Capacitance 50pF
Drain to Source Breakdown Voltage 90V
Gate to Source Voltage (Vgs) 20V
Threshold Voltage 800mV
Continuous Drain Current (ID) 350mA
Turn-Off Delay Time 10 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 5V 10V
Drain to Source Voltage (Vdss) 90V
Current - Continuous Drain (Id) @ 25°C 350mA Tj
Input Capacitance (Ciss) (Max) @ Vds 50pF @ 24V
Vgs(th) (Max) @ Id 2V @ 1mA
Rds On (Max) @ Id, Vgs 4Ohm @ 1A, 10V
FET Type N-Channel
Turn On Delay Time 10 ns
Power Dissipation 6.25W
Element Configuration Single
Power Dissipation-Max 6.25W Tc
Number of Channels 1
Technology MOSFET (Metal Oxide)
Min Operating Temperature -55°C
Max Operating Temperature 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2010
Packaging Bulk
Operating Temperature -55°C~150°C TJ
Physical
Supplier Device Package TO-39
Number of Pins 3
Package / Case TO-205AD, TO-39-3 Metal Can
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 14 Weeks
