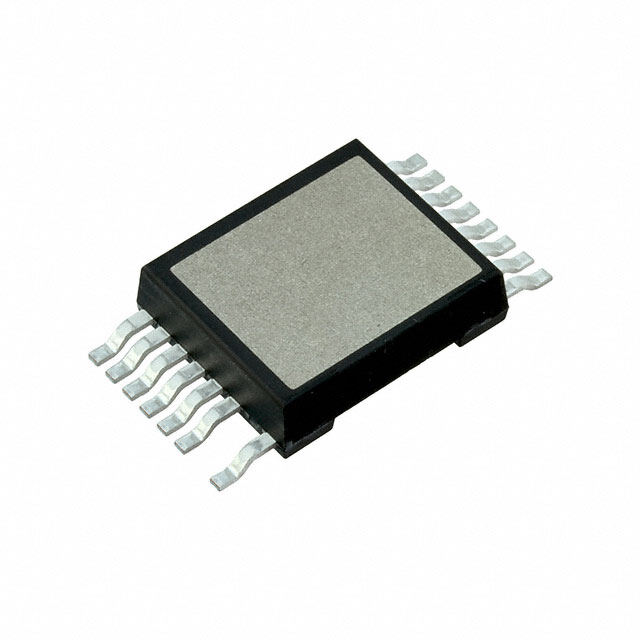

IXRFSM18N50
RoHS
/
Package 16-BESOP (0.790, 20.11mm Width), 15 Leads, Exposed Pad
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
18A 500V MOSFET IN SMPD PACKAGE
PDF
/
Inventory: 6768
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 16-BESOP (0.790, 20.11mm Width), 15 Leads, Exposed Pad
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Series SMPD
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology MOSFET (Metal Oxide)
Power Dissipation-Max 835W
FET Type N-Channel
Rds On (Max) @ Id, Vgs 340m Ω @ 9.5A, 20V
Vgs(th) (Max) @ Id 6.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 2250pF @ 400V
Current - Continuous Drain (Id) @ 25°C 19A Tc
Gate Charge (Qg) (Max) @ Vgs 42nC @ 10V
Drain to Source Voltage (Vdss) 500V
Drive Voltage (Max Rds On,Min Rds On) 20V
Vgs (Max) ±20V
