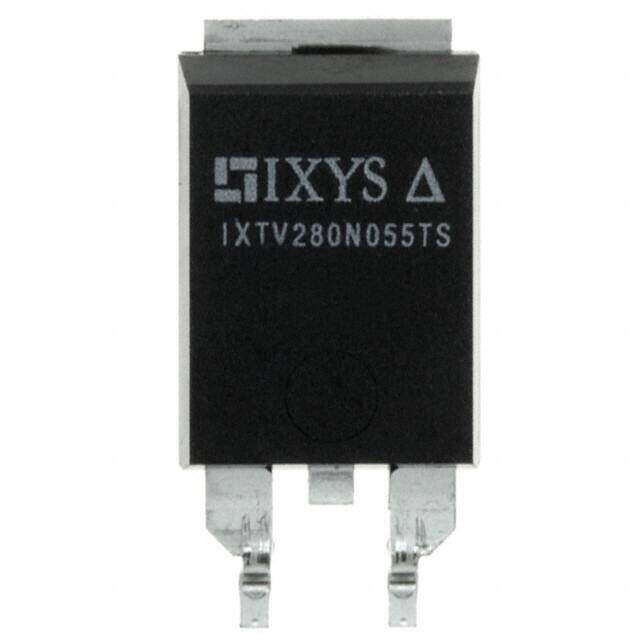

IXTV280N055TS
RoHS
/
Package PLUS-220SMD
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 55V 280A PLUS220SMD
PDF
/
Inventory: 7876
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case PLUS-220SMD
Number of Pins 3
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tube
Published 2006
Series TrenchMV?
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Additional Feature AVALANCHE RATED
Technology MOSFET (Metal Oxide)
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
JESD-30 Code R-PSSO-G2
Qualification Status Not Qualified
Number of Elements 1
Power Dissipation-Max 550W Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 550W
Case Connection DRAIN
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 3.2m Ω @ 50A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 9800pF @ 25V
Current - Continuous Drain (Id) @ 25°C 280A Tc
Gate Charge (Qg) (Max) @ Vgs 200nC @ 10V
Rise Time 55ns
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Fall Time (Typ) 37 ns
Turn-Off Delay Time 49 ns
Continuous Drain Current (ID) 280A
Drain to Source Breakdown Voltage 55V
Pulsed Drain Current-Max (IDM) 600A
Avalanche Energy Rating (Eas) 1500 mJ
Compliance
RoHS Status RoHS Compliant
