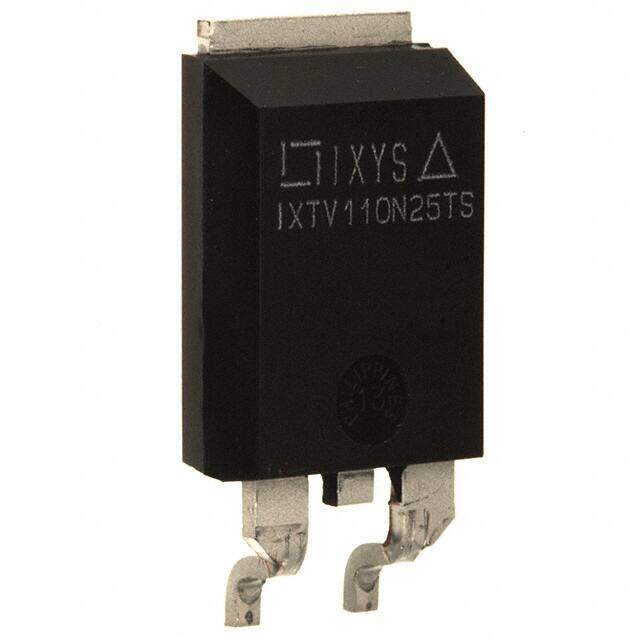

IXTV110N25TS
RoHS
/
Package PLUS-220SMD
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 250V 110A PLUS220SMD
PDF
/
Buying Options
Total Price: USD $86.21
Unit Price: USD $86.20965
≥1 USD $86.20965
≥10 USD $83.51545
≥100 USD $80.82125
≥500 USD $78.12705
≥1000 USD $70.0454
Inventory: 1158
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case PLUS-220SMD
Number of Pins 3
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Published 2012
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Additional Feature AVALANCHE RATED
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Terminal Form THROUGH-HOLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
JESD-30 Code R-PSIP-T2
Qualification Status Not Qualified
Number of Elements 1
Power Dissipation-Max 694W Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 694W
Case Connection DRAIN
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 24m Ω @ 55A, 10V
Vgs(th) (Max) @ Id 4.5V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds 9400pF @ 25V
Current - Continuous Drain (Id) @ 25°C 110A Tc
Gate Charge (Qg) (Max) @ Vgs 157nC @ 10V
Rise Time 27ns
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Fall Time (Typ) 27 ns
Turn-Off Delay Time 60 ns
Continuous Drain Current (ID) 110A
Gate to Source Voltage (Vgs) 20V
Drain-source On Resistance-Max 0.024Ohm
Drain to Source Breakdown Voltage 250V
Avalanche Energy Rating (Eas) 1000 mJ
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
