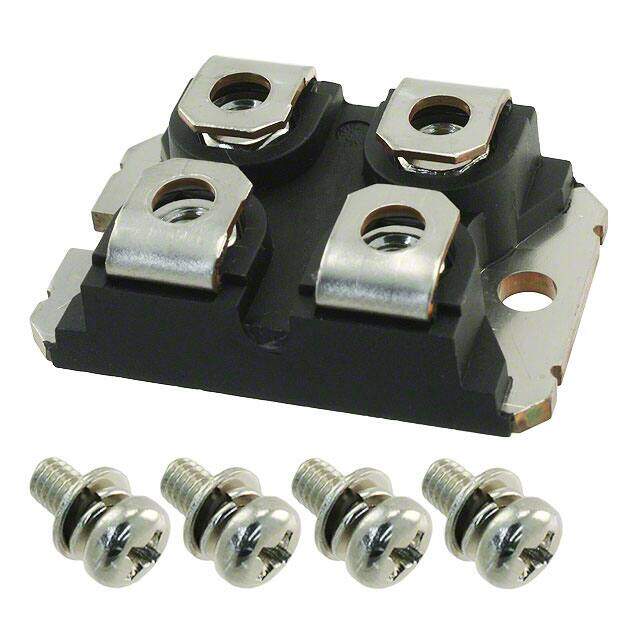

IXTN102N65X2
RoHS
RoHS compliant
RoHS compliantPackage SOT-227-4, miniBLOC
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 650V 76A X2 SOT-227
PDF
/
Buying Options
Total Price: USD $30.45
Unit Price: USD $30.448
≥1 USD $30.448
≥10 USD $27.05296
≥100 USD $23.661352
Inventory: 111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Published 2015
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Technology MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Power Dissipation-Max 595AW Tc
FET Type N-Channel
Rds On (Max) @ Id, Vgs 30m Ω @ 51A, 10V
Vgs(th) (Max) @ Id 5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 10900pF @ 25V
Current - Continuous Drain (Id) @ 25°C 76A Tc
Gate Charge (Qg) (Max) @ Vgs 152nC @ 10V
Drain to Source Voltage (Vdss) 650V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±30V
Continuous Drain Current (ID) 76A
Compliance
RoHS Status ROHS3 Compliant
