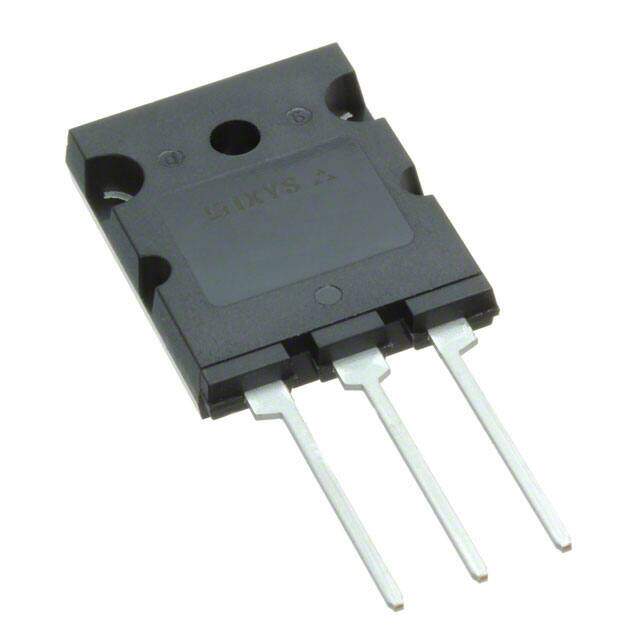

IXTK102N65X2
RoHS
RoHS compliant
RoHS compliantPackage TO-264-3, TO-264AA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 650V 102A X2 TO-264
PDF
/
Buying Options
Total Price: USD $17.4
Unit Price: USD $17.3976
≥1 USD $17.3976
≥10 USD $14.083168
≥100 USD $13.254648
≥500 USD $12.012018
Inventory: 132
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Continuous Drain Current (ID) 102A
Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 650V
Gate Charge (Qg) (Max) @ Vgs 152nC @ 10V
Current - Continuous Drain (Id) @ 25°C 102A Tc
Input Capacitance (Ciss) (Max) @ Vds 10900pF @ 25V
Vgs(th) (Max) @ Id 5V @ 250μA
Rds On (Max) @ Id, Vgs 30m Ω @ 51A, 10V
FET Type N-Channel
Power Dissipation-Max 1040W Tc
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) NOT SPECIFIED
Technology MOSFET (Metal Oxide)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2015
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Package / Case TO-264-3, TO-264AA
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 15 Weeks
