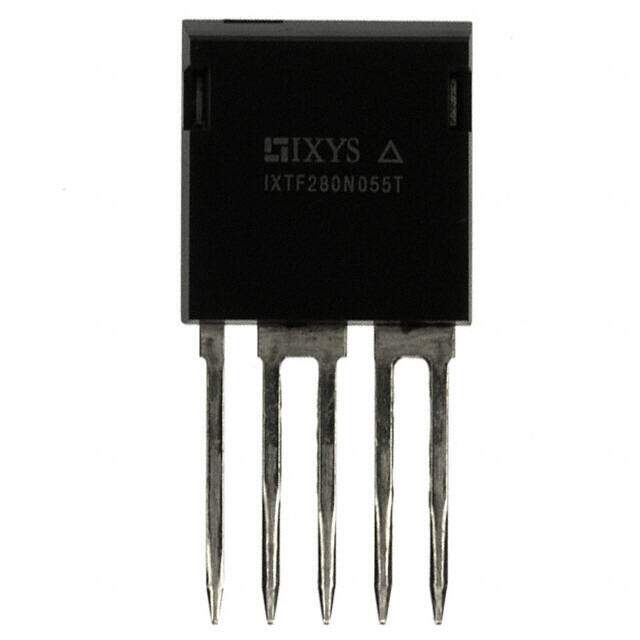

IXTF280N055T
RoHS
/
Package i4-Pac?-5
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 55V 160A ISOPLUS I4
PDF
/
Inventory: 2492
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case i4-Pac?-5
Number of Pins 5
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tube
Published 2007
Series TrenchMV?
JESD-609 Code e1
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature AVALANCHE RATED, UL RECOGNIZED
Technology MOSFET (Metal Oxide)
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 5
Qualification Status Not Qualified
Number of Elements 1
Configuration SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max 200W Tc
Operating Mode ENHANCEMENT MODE
Power Dissipation 200W
Case Connection ISOLATED
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 4m Ω @ 50A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 9800pF @ 25V
Current - Continuous Drain (Id) @ 25°C 160A Tc
Gate Charge (Qg) (Max) @ Vgs 200nC @ 10V
Rise Time 55ns
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Fall Time (Typ) 37 ns
Turn-Off Delay Time 49 ns
Continuous Drain Current (ID) 160A
Drain to Source Breakdown Voltage 55V
Compliance
RoHS Status RoHS Compliant
