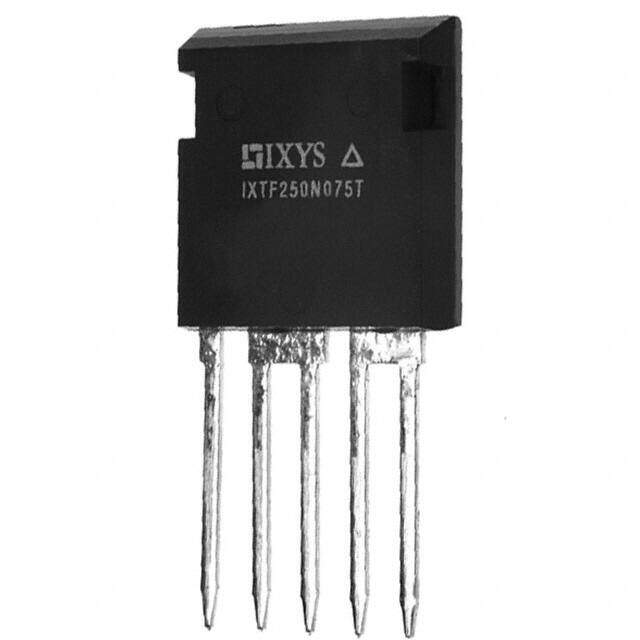

IXTF250N075T
RoHS
/
Package i4-Pac?-5
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 75V 140A ISOPLUS I4
PDF
/
Inventory: 8151
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Drain to Source Breakdown Voltage 75V
Drain-source On Resistance-Max 0.004Ohm
Drain Current-Max (Abs) (ID) 130A
Continuous Drain Current (ID) 140A
Turn-Off Delay Time 58 ns
Fall Time (Typ) 45 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Rise Time 50ns
Gate Charge (Qg) (Max) @ Vgs 200nC @ 10V
Current - Continuous Drain (Id) @ 25°C 140A Tc
Input Capacitance (Ciss) (Max) @ Vds 9900pF @ 25V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 4.4m Ω @ 50A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Case Connection ISOLATED
Power Dissipation 200W
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 200W Tc
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
Qualification Status Not Qualified
Pin Count 5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology MOSFET (Metal Oxide)
Additional Feature AVALANCHE RATED, UL RECOGNIZED
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e1
Series TrenchMV?
Published 2007
Packaging Tube
Operating Temperature -55°C~175°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 5
Package / Case i4-Pac?-5
Mounting Type Through Hole
Mount Through Hole
