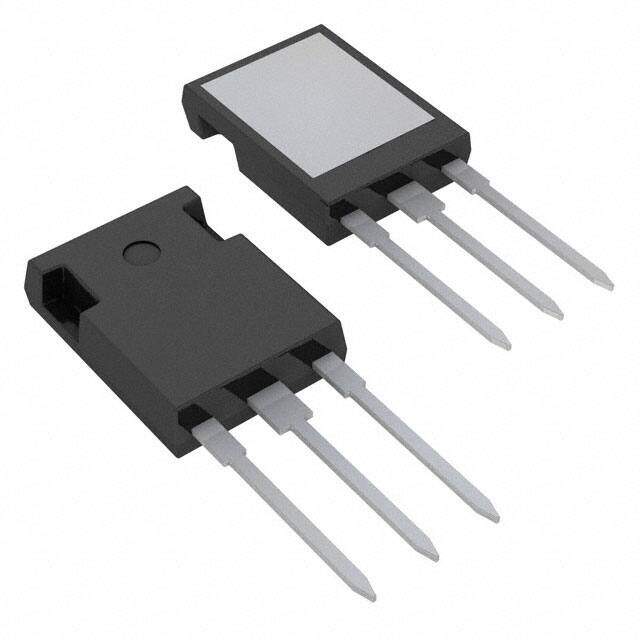

IXFR48N60P
RoHS
RoHS compliant
RoHS compliantPackage ISOPLUS247?
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 600V 32A ISOPLUS247
PDF
/
Buying Options
Total Price: USD $17.37
Unit Price: USD $17.372323
≥1 USD $17.372323
≥10 USD $16.388982
≥100 USD $15.461306
≥500 USD $14.586134
≥1000 USD $13.760506
Inventory: 970
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 30 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case ISOPLUS247?
Number of Pins 3
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Published 2006
Series HiPerFET?, PolarHT?
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature AVALANCHE RATED, UL RECOGNIZED
Voltage - Rated DC 600V
Technology MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel) NOT SPECIFIED
Current Rating 48A
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
Qualification Status Not Qualified
Number of Elements 1
Power Dissipation-Max 300W Tc
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 300W
Case Connection ISOLATED
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 150m Ω @ 24A, 10V
Vgs(th) (Max) @ Id 5V @ 8mA
Input Capacitance (Ciss) (Max) @ Vds 8860pF @ 25V
Current - Continuous Drain (Id) @ 25°C 32A Tc
Gate Charge (Qg) (Max) @ Vgs 150nC @ 10V
Rise Time 25 ns
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±30V
Fall Time (Typ) 22 ns
Turn-Off Delay Time 85 ns
Continuous Drain Current (ID) 32A
Gate to Source Voltage (Vgs) 30V
Drain-source On Resistance-Max 0.15Ohm
Drain to Source Breakdown Voltage 600V
Pulsed Drain Current-Max (IDM) 110A
Avalanche Energy Rating (Eas) 2000 mJ
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
