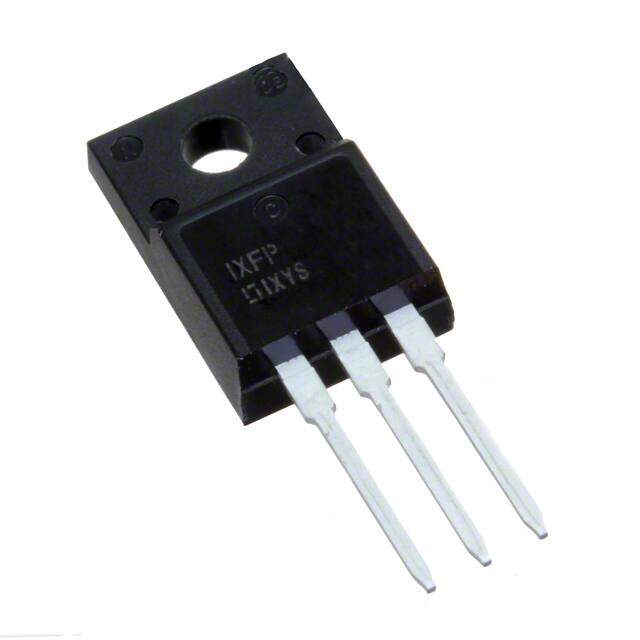

IXFP4N85XM
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3 Full Pack
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 850V 3.5A TO220
PDF
/
Buying Options
Total Price: USD $3.05
Unit Price: USD $3.051772
≥1 USD $3.051772
≥10 USD $2.879026
≥100 USD $2.716062
≥500 USD $2.562325
≥1000 USD $2.417282
Inventory: 1215
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 850V
Gate Charge (Qg) (Max) @ Vgs 7nC @ 10V
Current - Continuous Drain (Id) @ 25°C 3.5A Tc
Input Capacitance (Ciss) (Max) @ Vds 247pF @ 25V
Vgs(th) (Max) @ Id 5.5V @ 250μA
Rds On (Max) @ Id, Vgs 2.5 Ω @ 2A, 10V
FET Type N-Channel
Power Dissipation-Max 35W Tc
Technology MOSFET (Metal Oxide)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series HiPerFET?
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Package / Case TO-220-3 Full Pack
Mounting Type Through Hole
Supply Chain
Factory Lead Time 19 Weeks
