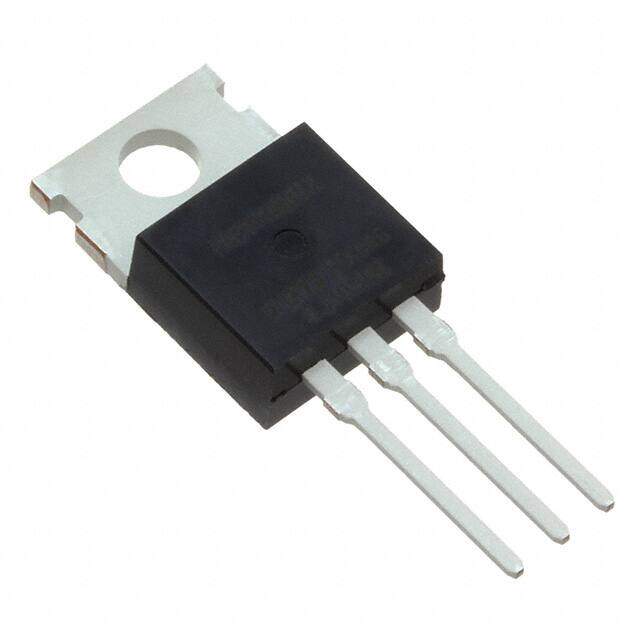

IXFP4N85X
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 850V 3.5A TO220AB
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.798706
≥1 USD $1.798706
≥10 USD $1.568472
≥100 USD $1.424575
≥500 USD $1.00035
≥1000 USD $0.9671
≥3000 USD $0.8664
Inventory: 42
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mounting Type Through Hole
Package / Case TO-220-3
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Published 2016
Series HiPerFET?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology MOSFET (Metal Oxide)
Power Dissipation-Max 150W Tc
FET Type N-Channel
Rds On (Max) @ Id, Vgs 2.5 Ω @ 2A, 10V
Vgs(th) (Max) @ Id 5.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 247pF @ 25V
Current - Continuous Drain (Id) @ 25°C 3.5A Tc
Gate Charge (Qg) (Max) @ Vgs 7nC @ 10V
Drain to Source Voltage (Vdss) 850V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±30V
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
