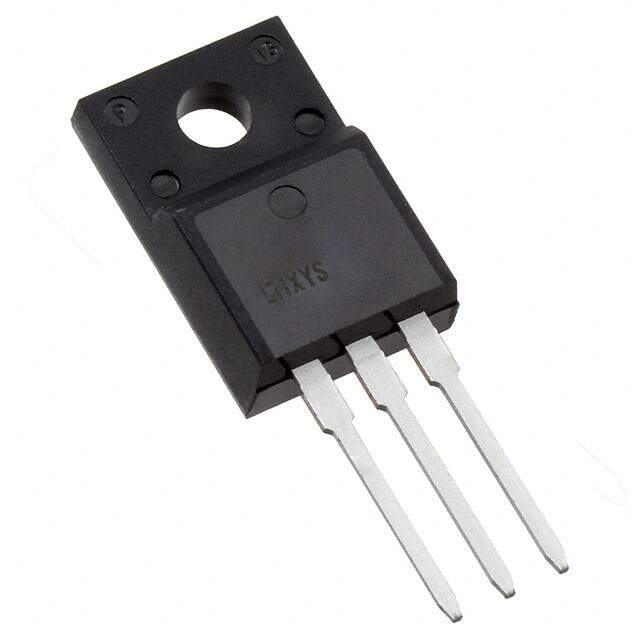

IXFP30N25X3M
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3 Full Pack, Isolated Tab
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CHANNEL 250V 30A TO220
PDF
/
Buying Options
Total Price: USD $5.8
Unit Price: USD $5.7992
≥1 USD $5.7992
≥10 USD $4.9676
≥100 USD $4.139432
≥500 USD $3.65244
≥1000 USD $3.287187
≥3000 USD $3.08022
Inventory: 311
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack, Isolated Tab
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Series HiPerFET?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology MOSFET (Metal Oxide)
Power Dissipation-Max 36W Tc
FET Type N-Channel
Rds On (Max) @ Id, Vgs 60m Ω @ 15A, 10V
Vgs(th) (Max) @ Id 4.5V @ 500μA
Input Capacitance (Ciss) (Max) @ Vds 1450pF @ 25V
Current - Continuous Drain (Id) @ 25°C 30A Tc
Gate Charge (Qg) (Max) @ Vgs 21nC @ 10V
Drain to Source Voltage (Vdss) 250V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Compliance
RoHS Status ROHS3 Compliant
