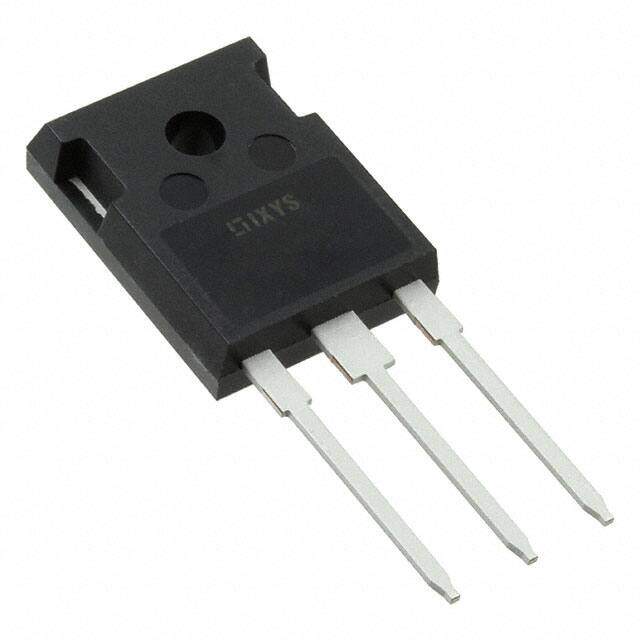

IXFH30N50Q3
RoHS
RoHS compliant
RoHS compliantPackage TO-247-3
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 500V 30A TO-247
PDF
/
Buying Options
Total Price: USD $11.48
Unit Price: USD $11.484
≥1 USD $11.484
≥10 USD $9.29867
≥100 USD $8.7516
≥500 USD $7.931167
≥1000 USD $7.274784
Inventory: 76
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.3mm
Length 16.26mm
Height 16.26mm
Technical
Avalanche Energy Rating (Eas) 1500 mJ
Pulsed Drain Current-Max (IDM) 90A
Drain to Source Breakdown Voltage 500V
Drain-source On Resistance-Max 0.2Ohm
Gate to Source Voltage (Vgs) 30V
JEDEC-95 Code TO-247AD
Continuous Drain Current (ID) 30A
Turn-Off Delay Time 26 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Rise Time 250 ns
Gate Charge (Qg) (Max) @ Vgs 62nC @ 10V
Current - Continuous Drain (Id) @ 25°C 30A Tc
Input Capacitance (Ciss) (Max) @ Vds 3200pF @ 25V
Vgs(th) (Max) @ Id 6.5V @ 4mA
Rds On (Max) @ Id, Vgs 200m Ω @ 15A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 14 ns
Case Connection DRAIN
Power Dissipation 690W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 690W Tc
Number of Elements 1
Qualification Status Not Qualified
Pin Count 3
Reach Compliance Code unknown
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Power
Additional Feature AVALANCHE RATED
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series HiPerFET?
Published 2008
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 3
Package / Case TO-247-3
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 20 Weeks
